throttle setup


Post new topic   Reply to topic    Matronics Email Lists Forum Index -> Pietenpol-List
View previous topic :: View next topic
Author Message
taildrags



Joined: 29 Dec 2009
Posts: 1655
Location: Medford, OR

PostPosted: Sun Nov 24, 2019 11:39 am    Post subject: throttle setup Reply with quote

G'day, Pietenpolers;

In an effort to get a Piet thread bumped to the top of the topics list instead of the annual list support threads (I already made my annual contribution to Matronics, thank you Matt), I'm throwing out a general question about throttle setups. I don't like the setup on my airplane and am going to start from scratch. To describe what I have, it's a Bowden cable running from the rear cockpit to the carb. In the front cockpit, a wooden sewing thread bobbin with the edges rounded off has been slipped over the center wire with bug nuts clamping each side of it to the center wire to let the front cockpit occupant slide it back and forth to work the throttle. The setup looks pretty cheesy, but since it's tucked in pretty tight under the top edge of the cockpit, I've never had a passenger snag it or bump it while getting in or out. Other than that, not much else good about it.

In the rear cockpit, a simple flat aluminum lever with the pivot point at the bottom and a round knob up near the top coaming works the throttle. It's pretty cheesy too, but what I like is that I can rest my left hand on the coaming and use my fingertips to work the throttle. It's very stable and easy to make small changes in engine power that way, especially on a bumpy afternoon. Since the knob is up near the coaming rather than down further, I can also reach in and work the throttle very easily from outside the cockpit while prop-starting. It also has enough friction and drag in the cables and lever where I can set throttle in cruise and rarely have it back off or creep off of the RPM that I want.

So what I'm looking for are pix or ideas on how you set up your throttle(s). I've looked through some of the setups in Westcoastpiet. I've already decided to link the front and rear throttles with a rod rather than with the Bowden cable, but other than that, I'm open to ideas. The builder routed the throttle cable inside the cockpit, not outside between the plywood and fabric, so I can get to all of it if I choose to. Thanks.

Oscar Zuniga
Medford, OR


- The Matronics Pietenpol-List Email Forum -


Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?Pietenpol-List

_________________
Oscar Zuniga
Medford, OR
Air Camper NX41CC "Scout"
A75 power, 72x36 Culver prop
Back to top
View user's profile Send private message Send e-mail Visit poster's website
oldbird



Joined: 23 Apr 2015
Posts: 106

PostPosted: Mon Nov 25, 2019 6:11 am    Post subject: throttle setup Reply with quote

Hi Oscar

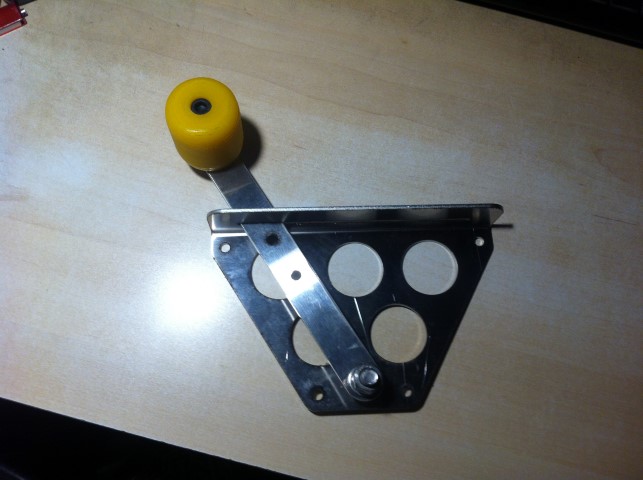

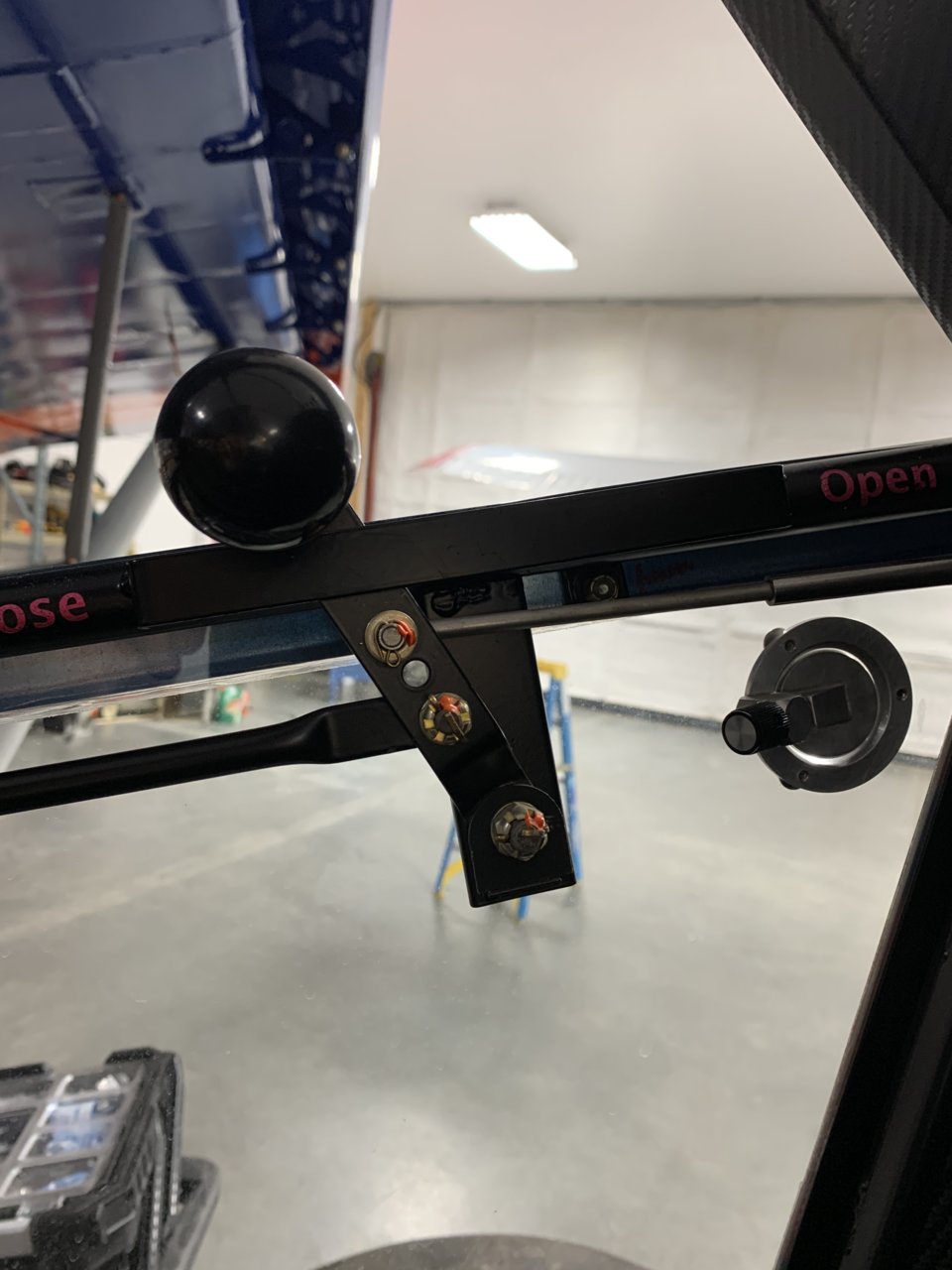

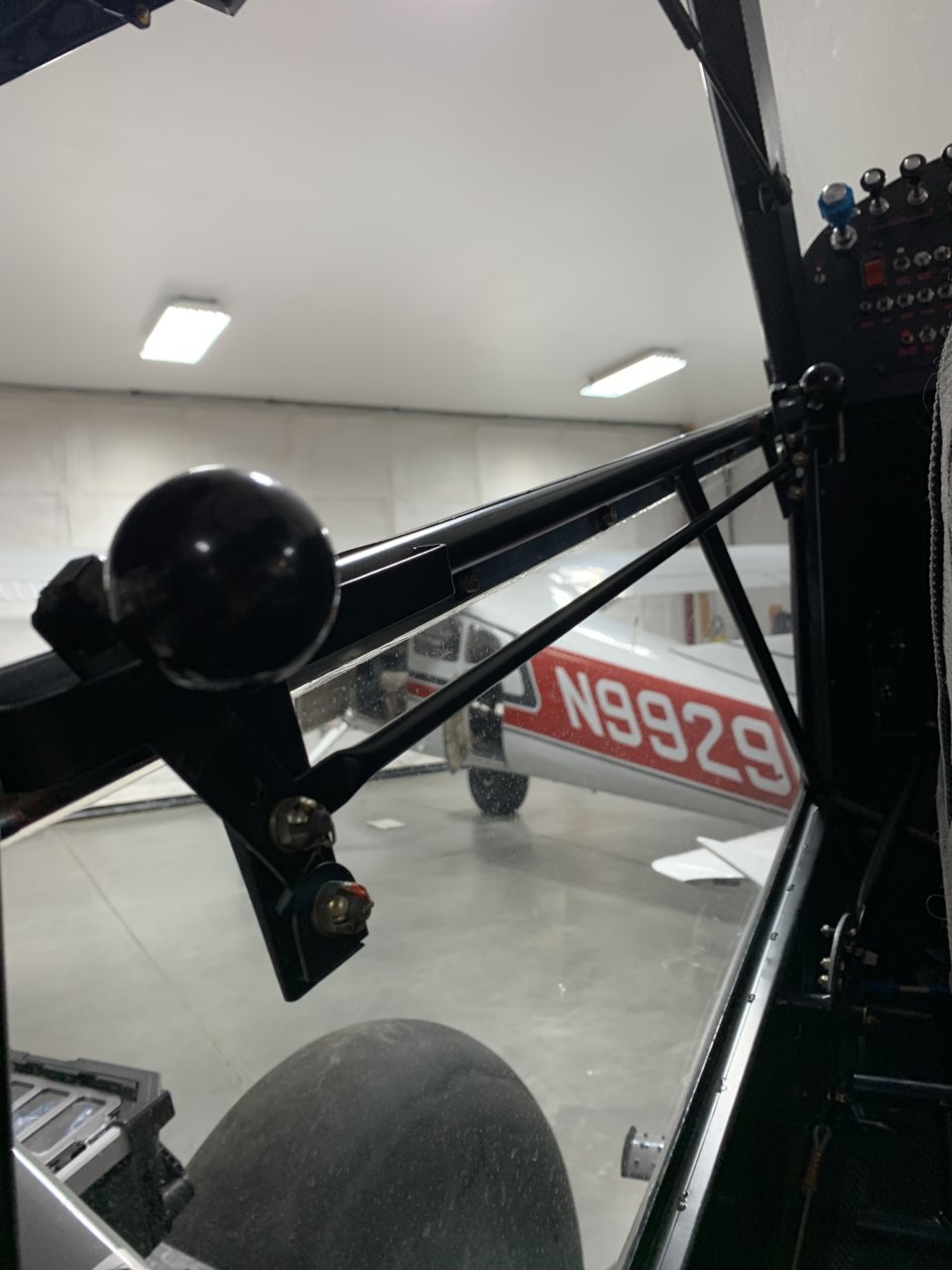

I made my throttle levers as in the picture. Front and rear are identical, connected with solid rod. A bowden cable, actually marine throttle or gearshift linkage, runs from the rear lever to the carb, inside wall of the cockpits. The size of the bowden is the same as the piper's, but since it is marine, it is all in stainless steel.
