bobnoffs
Joined: 04 Jul 2012
Posts: 132
Location: northern wi.
|
 Posted: Mon Oct 05, 2020 2:52 am Post subject: Re: voltage monitor |
 |
|
the link charlie posted shows a graph i am used to seeing with the earthx. i take this graph to mean i will give up 3ah of battery by using 13.0 as a setpoint vs. 13.5 volts. i have no second alternator so it is important to me to know asap when i have only battery power to keep the engine running.
| | - The Matronics AeroElectric-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?AeroElectric-List |
|
|
|
| Back to top |
|
 |
nuckolls.bob(at)aeroelect
Guest
|
| Posted: Tue Oct 06, 2020 9:35 am Post subject: voltage monitor |
|
|
 Posted: Sun Oct 04, 2020 4:51 pm Post subject: voltage monitor
From: Technical Manual for Model No. LR3D-14 and LR3D-28 Linear RegulatorWith Over-Voltage Protection, Low-Voltage Sensing, And Field-Adjustable Charging Voltage
"The LV warning light will begin to flash when the voltage sensed at terminal 3 drops to approximately 12.7V and below"
Disregard if this is not relevant to this discussion.
It is very relevant. Thank you.
This is news to me but I've not been directly
involved or plugged in to B&C design decisions
for some years
With that in mind, and given the number and
variety of programs I've worked it seemed
prudent to verify the hip-pocket archives.
Dug out my AEC9005 drawings and the setpoint
was 13.0 volts. All the data I have on early
LR3 series regulators suggest that 12.7
has been the setpoint from day one.

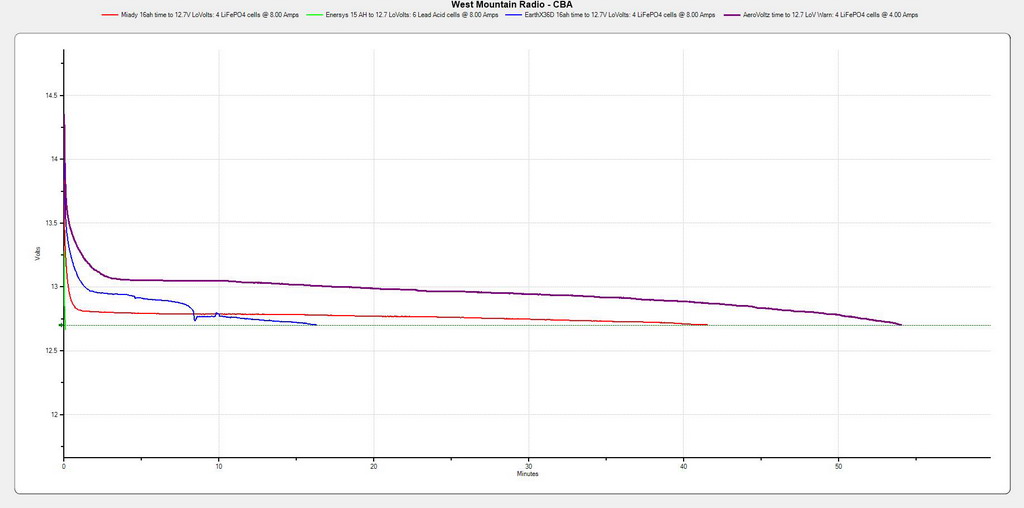

Just for grins, I plotted Time-to-12.7v
for four batteries. An AeroVolts, an
exemplar EarthX, a Miady 16AH device
and just for the heck of it, a fresh
Enersy 16AH battery. Plots attached.

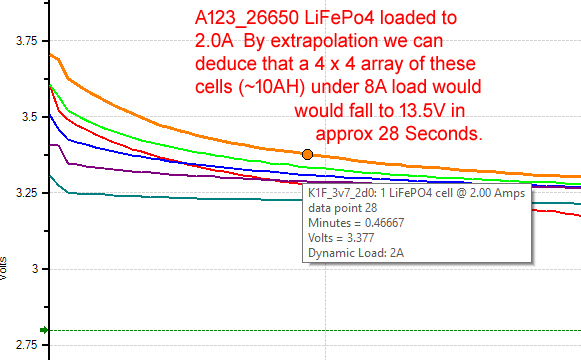

I've also included a test for a A123,
26650 cell where I deduce that a 4x4
array of these cells in a 14v system
battery would fall below 13.5 volts
in about 30 seconds.
I suggest these plots show that a 13.5
volt lo volts warning threshold would
be suited to all chemistries. Note that
the SVLA falls like a rock to well under
12.7 when it looses alternator support . . .
well, it IS a 12v battery while LiFePO4
devices are generally considered to be
13.2 volt batteries (although AeroVolts
labels theirs as a 12V while the plots
show that it has the highest alternator-
out voltage of the lot).
Hence, I stand better informed and
agree that the legacy LR3 configuration
is unsuitable for lithium battery management
without (easy to do) modification as
is our AEC9005 LV Warning Module.
Sorry for ignoring you the past day or
so. Been wrestling with some issues
in a car I've got sold . . . along
with a recalcitrant wifi router.
Ever see the look on the fact of a couple
teenagers when you tell them, "the
wifi is down"?
Bob . . .
| | - The Matronics AeroElectric-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?AeroElectric-List |
|
| Description: |
|
| Filesize: |
49.81 KB |
| Viewed: |
1742 Time(s) |
|
| Description: |
|
| Filesize: |
163.78 KB |
| Viewed: |
1742 Time(s) |
|
|
|
| Back to top |
|
|
nuckolls.bob(at)aeroelect
Guest
|
| Posted: Tue Oct 06, 2020 10:27 am Post subject: voltage monitor |
|
|
At 05:52 AM 10/5/2020, you wrote:
| Quote: | --> AeroElectric-List message posted by: "bobnoffs" <icubob(at)gmail.com>
the link charlie posted shows a graph i am used to seeing with the earthx. i take this graph to mean i will give up 3ah of battery by using 13.0 as a setpoint vs. 13.5 volts. i have no second alternator so it is important to me to know asap when i have only battery power to keep the engine running.
|
13.5 is cool . . .
Bob . . .
