 Posted: Thu Jun 16, 2016 7:56 am Post subject: Review request for RV-9 Electrical System (G3X, GTN, etc |
 |
|
At 08:36 AM 6/16/2016, you wrote:
| Quote: | | One place on my Cessna I have found a breaker VERY useful is the 12v power port (aka Cigarette lighter). Sometimes items with too big a draw get plugged in and blow the breaker, remove item, reset, and can still use other items in flight. |
The factory stock 'cigar' lighter? Waaayyyy back when,
the folks at the factory decided it was better to call
them cigar lighters . . . seems that tobacco smoke
particulates were too fine to be captured by the
paper air filter for the vacuum driven instruments.
We were seeing early demise of gyros flown by
pilots who smoked while airborne . . .
Somebody got the idea that this problem might be
helped if we started calling them cigar lighters . . .
fatter smoke particles . . .
[img]cid:.0[/img]
In any case, your anecdote is the corollary to
outlets in your house where a branch circuit
is shared by other outlets with wildly variable
total loads. Too many hot-dog cookers, microwaves,
and pizza ovens plugged in at the same time
may pop a breaker.
Fuses and breakers intended to supply system
hardware should not be shared with any other
system . . . unless loss of ALL systems is
a low, acceptable risk condition. The founding
philosophy for bus structures with independently
protected feeders is ISOLATION between systems
such that no fault brings down more than the
affected system.

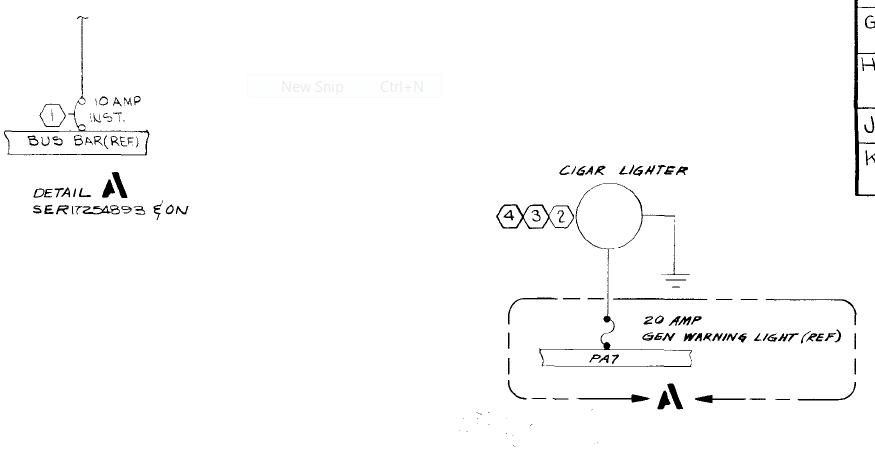

How much stuff do you plug into the cigar
lighter? On many Cessnas of the 1970 time frame
the cigar lighter was powered through a 20A fuse
and later a 10A breaker. 10A is a LOT of 'stuff'
to run from such a connector
[img]cid:.1[/img]
Bob . . .
