Posted: Sun Feb 26, 2017 6:47 am Post subject: crimp tool positioner

Hi all, Can some one tell me what positioner  I need for the standard D-sub pins for an MH860 crimp tool? Also known as M22520/7-01

Thanks

Dan

- The Matronics AeroElectric-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?AeroElectric-List

_________________
Do not archive

Dan Stanton
N801S CH 801
N226BS CH701
N24DS CH750

donvansanten(at)gmail.com
Guest

Posted: Sun Feb 26, 2017 8:42 am Post subject: crimp tool positioner

m22520/208 Stein has them for $65.



On Feb 26, 2017 06:56, "dj45" <dj45101(at)comcast.net (dj45101(at)comcast.net)> wrote: 	  Quote:
		  --> AeroElectric-List message posted by: "dj45" <dj45101(at)comcast.net (dj45101(at)comcast.net)>



 Hi all, Can some one tell me what positioner  I need for the standard D-sub pins for an MH860 crimp tool? Also known as M22520/7-01

 Thanks

 Dan



 --------

 Do not archive



 Dan Stanton

 N801S CH 801

 N226BS CH701









 Read this topic online here:



 http://forums.matronics.com/viewtopic.php?p=466663#466663













 ====================================

  -

 Electric-List" rel="noreferrer" target="_blank">http://www.matronics.com/Navigator?AeroElectric-List

 ====================================

  FORUMS -

 eferrer" target="_blank">http://forums.matronics.com

 ====================================

 WIKI -

 errer" target="_blank">http://wiki.matronics.com

 ====================================

 b Site -

           -Matt Dralle, List Admin.

 rel="noreferrer" target="_blank">http://www.matronics.com/contribution

 ====================================

- The Matronics AeroElectric-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?AeroElectric-List

donvansanten(at)gmail.com
Guest

Posted: Sun Feb 26, 2017 8:56 am Post subject: crimp tool positioner

sorry, that is for the /2-01



On Feb 26, 2017 06:56, "dj45" <dj45101(at)comcast.net (dj45101(at)comcast.net)> wrote: 	  Quote:
		  --> AeroElectric-List message posted by: "dj45" <dj45101(at)comcast.net (dj45101(at)comcast.net)>



 Hi all, Can some one tell me what positioner  I need for the standard D-sub pins for an MH860 crimp tool? Also known as M22520/7-01

 Thanks

 Dan



 --------

 Do not archive



 Dan Stanton

 N801S CH 801

 N226BS CH701









 Read this topic online here:



 http://forums.matronics.com/viewtopic.php?p=466663#466663













 ====================================

  -

 Electric-List" rel="noreferrer" target="_blank">http://www.matronics.com/Navigator?AeroElectric-List

 ====================================

  FORUMS -

 eferrer" target="_blank">http://forums.matronics.com

 ====================================

 WIKI -

 errer" target="_blank">http://wiki.matronics.com

 ====================================

 b Site -

           -Matt Dralle, List Admin.

 rel="noreferrer" target="_blank">http://www.matronics.com/contribution

 ====================================

- The Matronics AeroElectric-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?AeroElectric-List

donvansanten(at)gmail.com
Guest

Posted: Sun Feb 26, 2017 9:21 am Post subject: crimp tool positioner

m22520/7-02 available at mouser



On Feb 26, 2017 06:56, "dj45" <dj45101(at)comcast.net (dj45101(at)comcast.net)> wrote: 	  Quote:
		  --> AeroElectric-List message posted by: "dj45" <dj45101(at)comcast.net (dj45101(at)comcast.net)>



 Hi all, Can some one tell me what positioner  I need for the standard D-sub pins for an MH860 crimp tool? Also known as M22520/7-01

 Thanks

 Dan



 --------

 Do not archive



 Dan Stanton

 N801S CH 801

 N226BS CH701









 Read this topic online here:



 http://forums.matronics.com/viewtopic.php?p=466663#466663













 ====================================

  -

 Electric-List" rel="noreferrer" target="_blank">http://www.matronics.com/Navigator?AeroElectric-List

 ====================================

  FORUMS -

 eferrer" target="_blank">http://forums.matronics.com

 ====================================

 WIKI -

 errer" target="_blank">http://wiki.matronics.com

 ====================================

 b Site -

           -Matt Dralle, List Admin.

 rel="noreferrer" target="_blank">http://www.matronics.com/contribution

 ====================================

- The Matronics AeroElectric-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?AeroElectric-List

nuckolls.bob(at)aeroelect
Guest

Posted: Mon Feb 27, 2017 1:25 pm Post subject: crimp tool positioner

At 11:14 AM 2/26/2017, you wrote:

  	  Quote:
		  m22520/7-02 available at mouser






   Unless you can find one on eBay or some

   such used, they're pretty pricey . . . I'd

   made some in the past but couldn't put my hands

   on one. Went out to the shop and carved

   one out:



 [img]cid:7.1.0.9.0.20170227151700.0220e8a0(at)aeroelectric.com.0[/img]

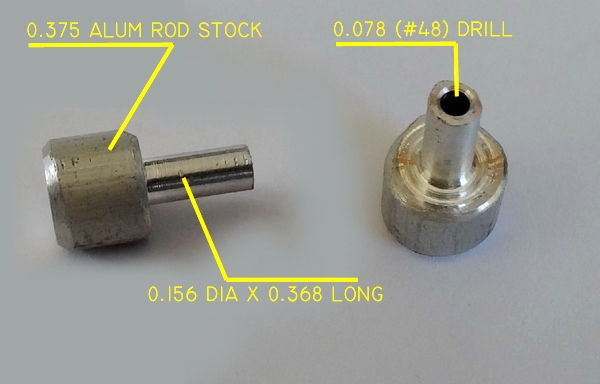

   3/8" rod stock of alum or steel works. I've used

   3/8" grade 3 bolts as material source. The exact

   diameter is not critical.



   Turn down a 0.156" x 0.368" "smoke stack" on

   the end and then drill with #48 drill at least

   0.5" deep.



   Attach to your Daniels tool with a small dab of

   RTV or E6000 . . . just enough to keep it from

   falling out.

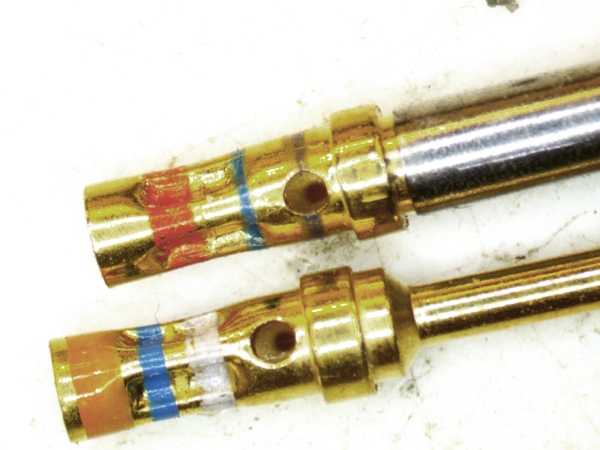

   The positioner you see above placed the crimps

   on these pins . . .



 [img]cid:7.1.0.9.0.20170227151700.0220e8a0(at)aeroelectric.com.1[/img]



    . . . right where I wanted them.









   Bob . . .

- The Matronics AeroElectric-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?AeroElectric-List


Description:

Filesize:

115.16 KB

Viewed:

5923 Time(s)


Description:

Filesize:

162.54 KB

Viewed:

5923 Time(s)

nuckolls.bob(at)aeroelect
Guest

Posted: Mon Feb 27, 2017 1:34 pm Post subject: crimp tool positioner

At 08:47 AM 2/26/2017, you wrote:

  	  Quote:
		  --> AeroElectric-List message posted by: "dj45" <dj45101(at)comcast.net>



 Hi all, Can some one tell me what positioner  I need for the standard D-sub pins for an MH860 crimp tool? Also known as M22520/7-01

 Thanks


    P.S. if you haven't already ordered/purchased one,

    you can have the DIY sample laying here on my

    desk . . . all my Daniels tools have positioners.

    Shoot me an address . . .







   Bob . . .

- The Matronics AeroElectric-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?AeroElectric-List

dj45

Joined: 25 Jul 2006
Posts: 92
Location: Jackson MI

Posted: Mon Feb 27, 2017 3:41 pm Post subject: Re: crimp tool positioner

Thank you Bob, with that info. I can make one here.

Once again, you have bailed my butt out.

- The Matronics AeroElectric-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?AeroElectric-List

_________________
Do not archive

Dan Stanton
N801S CH 801
N226BS CH701
N24DS CH750
