Do you know those connectors ?

Matronics Email Lists Forum Index -> AeroElectric-List

View previous topic :: View next topic

Author Message

gilles.thesee(at)free.fr
Guest

Posted: Wed Jan 11, 2017 5:18 am Post subject: Do you know those connectors ?

Hi all,

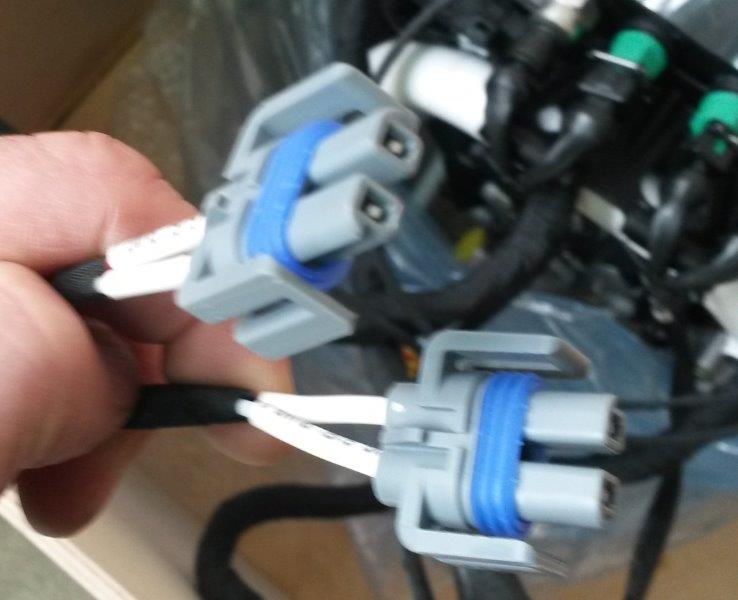

Does anyone happen to know the make and model of the connectors on the

attached picture ?

We would like to fabricate an extension cable for the 912iS fuel pumps,

but couldn't get an answer from our dealer or the Rotax Owner Forum.

Any suggestions ?



Thanks in advance,

--

Best regards,

Gilles

http://contrails.free.fr

http://lapierre.skunkworks.free.fr

- The Matronics AeroElectric-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?AeroElectric-List


Description:

Filesize:

45.03 KB

Viewed:

2432 Time(s)

kjashton(at)vnet.net
Guest

Posted: Wed Jan 11, 2017 6:50 am Post subject: Do you know those connectors ?

LeadingEdge shows them but backordered.  # 881 304    At $135 each (Yikes!) I would just cut them off and use a standard weatherproof auto connectors.

https://www.leadingedgeairfoils.com/connector-set-fuel-pump.html



Or go to the junkyard, cut off some nice connectors.

-Kent



 	  Quote:
		   On Jan 11, 2017, at 8:15 AM, GTH <gilles.thesee(at)free.fr> wrote:



 Hi all,



 Does anyone happen to know the make and model of the connectors on the attached picture ?

 We would like to fabricate an extension cable for the 912iS fuel pumps, but couldn't get an answer from our dealer or the Rotax Owner Forum.

 Any suggestions ?



 Thanks in advance,

 --

 Best regards,

 Gilles

 http://contrails.free.fr

 http://lapierre.skunkworks.free.fr



 <20161230_154523_sml.jpg>

- The Matronics AeroElectric-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?AeroElectric-List

gilles.thesee(at)free.fr
Guest

Posted: Wed Jan 11, 2017 7:09 am Post subject: Do you know those connectors ?

Le 11/01/2017 à 15:47, Kent or Jackie Ashton a écrit :

 	  Quote:




 LeadingEdge shows them but backordered.  # 881 304    At $135 each (Yikes!)

Kent,



Thank you for responding.

Yes, the price and availabilty...that's why we would like to get them

from the manufacturer and not from a Rotax dealer.

Also we would need the mating female counterpart.

 	  Quote:
		   I would just cut them off and use a standard weatherproof auto connectors.

 https://www.leadingedgeairfoils.com/connector-set-fuel-pump.html





That's plan B. But we would like to avoid modifying the standard wiring etc.

 	  Quote:


 Or go to the junkyard, cut off some nice connectors.

That's plan C^^!





Still searching, thanks

--

Best regards,

Gilles

http://contrails.free.fr

http://lapierre.skunkworks.free.fr

- The Matronics AeroElectric-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?AeroElectric-List

chaskuss(at)yahoo.com
Guest

Posted: Wed Jan 11, 2017 8:06 am Post subject: Do you know those connectors ?

The drawing in the link you provided looks like a GM WeatherPac connector. I suggest you show this connector to a local "quality" auto parts vendor. Forget asking the minimum wage employees at your local national chain auto parts store. Odds are they will be clueless.

Charlie

--------------------------------------------

On Wed, 1/11/17, GTH <gilles.thesee(at)free.fr> wrote:

 Subject: Re: Do you know those connectors ?

 To: aeroelectric-list(at)matronics.com

 Date: Wednesday, January 11, 2017, 10:06 AM

 --> AeroElectric-List message

 posted by: GTH <gilles.thesee(at)free.fr>

 Le 11/01/2017 Ã  15:47, Kent or Jackie Ashton a Ã©crit :

 >

 Jackie Ashton <kjashton(at)vnet.net>

 >

 > LeadingEdge shows them but backordered.Â  # 881

 304Â  Â  At $135 each (Yikes!)

 Kent,

 Thank you for responding.

 Yes, the price and availabilty...that's why we would like to

 get them

 from the manufacturer and not from a Rotax dealer.

 Also we would need the mating female counterpart.

 > I would just cut them off and use a standard

 weatherproof auto connectors.

 > https://www.leadingedgeairfoils.com/connector-set-fuel-pump.html

 That's plan B. But we would like to avoid modifying the

 standard wiring etc.

 >

 > Or go to the junkyard, cut off some nice

 connectors.Â

 That's plan C^^!

 Still searching, thanks

 --

 Best regards,

 Gilles

 http://contrails.free.fr

 http://lapierre.skunkworks.free.fr

 AeroElectric-List Email Forum -

 Â Â Â - MATRONICS WEB FORUMS -

 MATRONICS LIST WIKI -

 List Contribution Web Site -

 Â  Â  Â  Â  Â  Â  Â  -Matt

 Dralle, List Admin.

- The Matronics AeroElectric-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?AeroElectric-List

gilles.thesee(at)free.fr
Guest

Posted: Thu Jan 12, 2017 2:33 am Post subject: Do you know those connectors ?

Le 11/01/2017 Ã  17:03, Charles Kuss a Ã©crit :

 	  Quote:




 The drawing in the link you provided looks like a GM WeatherPac connector. I suggest you show this connector to a local "quality" auto parts vendor. Forget asking the minimum wage employees at your local national chain auto parts store. Odds are they will be clueless.





Charlie, Jim, Kent,



Thank you for responding.

Thanks a lot for pointing me to the Weather Pack stuff : the researched

connector is actually a Delphi Metri-Pack :



http://ecat.delphi.com/feature?search=12162017

 	  Quote:
		   2 Way Medium Gray Metri-Pack 150 Sealed Female Connector Assembly, Max

 Current 14 amps

 Part # 12162017

Less thant 1 $/â‚¬ apiece at Mouser Electronic's (+ seals and terminals).



Thanks a lot !



--

Best regards,

Gilles

http://contrails.free.fr

http://lapierre.skunkworks.free.fr

- The Matronics AeroElectric-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?AeroElectric-List
