Boost Pump & Filter

Matronics Email Lists Forum Index -> RV10-List

View previous topic :: View next topic

Author Message

jesse(at)saintaviation.co
Guest

Posted: Sat Feb 17, 2007 8:36 am Post subject: Boost Pump & Filter

This came up yesterday when a list member called me.  It is quite a pain in the neck to get all of those little short lines between the filter and pump, then from the pump to the floscan.  We realized that it would be easy to rearrange the brackets on the tunnel floor so all 3 of these parts are directly aligned.  That way the lines between them are just straight stubs of line with flared ends.  Is there a reason that this is not a good idea?  It is not a difficult modification, but I want to know if I am missing something.



Thanks.



Jesse Saint

Saint Aviation, Inc.

jesse(at)saintaviation.com (jesse(at)saintaviation.com)

www.saintaviation.com

Cell: 352-427-0285

Fax: 815-377-3694

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List

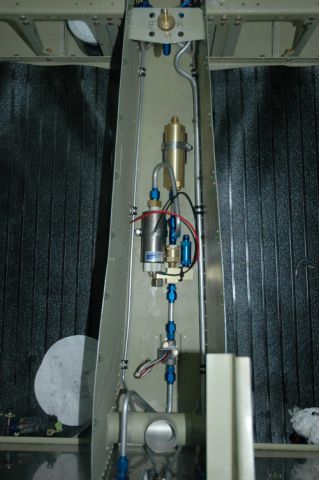

Description:

Filesize:

29.1 KB

Viewed:

200 Time(s)

jim(at)CombsFive.Com
Guest

Posted: Sat Feb 17, 2007 8:55 am Post subject: Boost Pump & Filter

Would you worry about thermal expansion of the straight sections putting stress on the connections.  At least those runs with bends in them have something to flex slightly.



Getting the straight pieces cut exactly the right length might also be tougher to do.



Jim C

N312F - Finish Kit (Still!)

============================================================

From: "Jesse Saint" <jesse(at)saintaviation.com>

Date: 2007/02/17 Sat AM 11:33:34 EST

To: <rv10-list(at)matronics.com>

Subject: Boost Pump & Filter



This came up yesterday when a list member called me.  It is quite a pain in

the neck to get all of those little short lines between the filter and pump,

then from the pump to the floscan.  We realized that it would be easy to

rearrange the brackets on the tunnel floor so all 3 of these parts are

directly aligned.  That way the lines between them are just straight stubs

of line with flared ends.  Is there a reason that this is not a good idea?

It is not a difficult modification, but I want to know if I am missing

something.







Thanks.







Jesse Saint



Saint Aviation, Inc.



jesse(at)saintaviation.com



www.saintaviation.com



Cell: 352-427-0285



Fax: 815-377-3694





============================================================

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List

AV8ORJWC

Joined: 13 Jul 2006
Posts: 1149
Location: Aurora, Oregon "Home of VANS"

Posted: Sat Feb 17, 2007 6:03 pm Post subject: Boost Pump & Filter

The AC 43.13 gives the reason for angles and bends in rigid tubing (flex tubing as well) as a dampener for Flex and improved connection between two devices that happen to be Inline.



When the B nut or the ferrule chafe from vibration, flex or pressure change, it is becomes much easier to understand the directive.



John Cox









From: owner-rv10-list-server(at)matronics.com [mailto:owner-rv10-list-server(at)matronics.com] On Behalf Of Jesse Saint

 Sent: Saturday, February 17, 2007 8:34 AM

 To: rv10-list(at)matronics.com

 Subject: Boost Pump & Filter





This came up yesterday when a list member called me.  It is quite a pain in the neck to get all of those little short lines between the filter and pump, then from the pump to the floscan.  We realized that it would be easy to rearrange the brackets on the tunnel floor so all 3 of these parts are directly aligned.  That way the lines between them are just straight stubs of line with flared ends.  Is there a reason that this is not a good idea?  It is not a difficult modification, but I want to know if I am missing something.



Thanks.



Jesse Saint

Saint Aviation, Inc.

jesse(at)saintaviation.com (jesse(at)saintaviation.com)

www.saintaviation.com

Cell: 352-427-0285

Fax: 815-377-3694





      [quote][b]

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List
