 Posted: Wed Mar 28, 2007 4:47 am Post subject: Jack photos |
 |
|
From: Gary Specketer [mailto:gspecketer(at)hotmail.com]
Sent: Wednesday, March 28, 2007 8:38 AM
To: speckter(at)comcast.net
Subject: FW: Jack photos

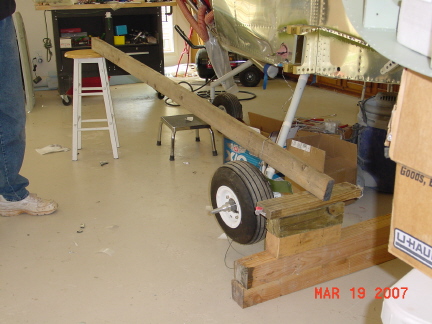

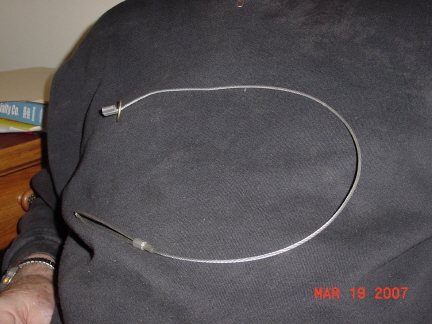

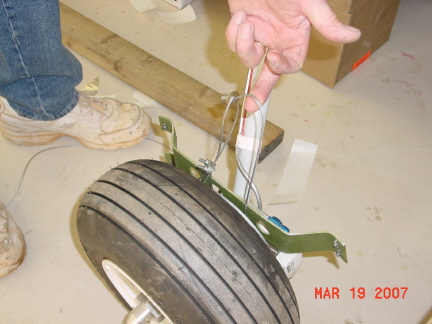

Here are some pictures of a simple jack. It can be carried on the plane and weighs only a few ounces. It consists of a 24” cable that is dropped between the break disc and the wheel pant mounting plate. For your home base you can get fancier for the blocks and lever, but this loop allows you to have it with the plane at all times.
[i]Gary[/i][i] [/i]
| | - The Matronics RV10-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?RV10-List |
|
| Description: |
|
| Filesize: |
63.29 KB |
| Viewed: |
209 Time(s) |
|
| Description: |
|
| Filesize: |
75.09 KB |
| Viewed: |
208 Time(s) |
|
| Description: |
|
| Filesize: |
67.89 KB |
| Viewed: |
188 Time(s) |
|
| Description: |
|
| Filesize: |
96.06 KB |
| Viewed: |
196 Time(s) |
|
| Description: |
|
| Filesize: |
96.01 KB |
| Viewed: |
172 Time(s) |
|
| Description: |
|
| Filesize: |
89.44 KB |
| Viewed: |
195 Time(s) |
|
| Description: |
|
| Filesize: |
80.99 KB |
| Viewed: |
190 Time(s) |
|
| Description: |
|
| Filesize: |
72.38 KB |
| Viewed: |
201 Time(s) |
|
|
|
| Back to top |
|
 |
Deems Davis
Joined: 09 Jan 2006
Posts: 925
|
| Posted: Wed Mar 28, 2007 7:16 am Post subject: Jack photos |
|
|
Gary, what a great and simple idea!
THANKS
Deems Davis # 406
Finishing - ( A Misnomer ! )
http://deemsrv10.com/
Do Not Archive
gary wrote:
| | - The Matronics RV10-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?RV10-List |
|
|
|
| Back to top |
|
|
pitts_pilot(at)bellsouth.
Guest
|
| Posted: Wed Mar 28, 2007 7:19 am Post subject: Jack photos |
|
|
Now that's the slickest thing I've seen in a long while!!!
Amazing how the simplest things escape us!
Linn
do not archive
gary wrote: [quote]
From: Gary Specketer [mailto:gspecketer(at)hotmail.com (gspecketer(at)hotmail.com)]
Sent: Wednesday, March 28, 2007 8:38 AM
To: speckter(at)comcast.net (speckter(at)comcast.net)
Subject: FW: Jack photos
Here are some pictures of a simple jack. It can be carried on the plane and weighs only a few ounces. It consists of a 24” cable that is dropped between the break disc and the wheel pant mounting plate. For your home base you can get fancier for the blocks and lever, but this loop allows you to have it with the plane at all times.
[b]
| | - The Matronics RV10-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?RV10-List |
|
|
|
| Back to top |
|
|
jjessen
Joined: 22 Apr 2006
Posts: 285
Location: OR
|
| Posted: Wed Mar 28, 2007 7:51 am Post subject: Jack photos |
|
|
What a great idea! Looks like it might be a little unsteady side to side. Is that an issue at all?
John Jessen
40328
From: owner-rv10-list-server(at)matronics.com [mailto:owner-rv10-list-server(at)matronics.com] On Behalf Of linn Walters
Sent: Wednesday, March 28, 2007 9:18 AM
To: rv10-list(at)matronics.com
Subject: Re: FW: Jack photos
Now that's the slickest thing I've seen in a long while!!!
Amazing how the simplest things escape us!
Linn
do not archive
gary wrote: [quote]
From: Gary Specketer [mailto:gspecketer(at)hotmail.com (gspecketer(at)hotmail.com)]
Sent: Wednesday, March 28, 2007 8:38 AM
To: speckter(at)comcast.net (speckter(at)comcast.net)
Subject: FW: Jack photos
Here are some pictures of a simple jack. It can be carried on the plane and weighs only a few ounces. It consists of a 24” cable that is dropped between the break disc and the wheel pant mounting plate. For your home base you can get fancier for the blocks and lever, but this loop allows you to have it with the plane at all times.
href="http://www.matronics.com/Navigator?RV10-List">http://www.matronics.com/Navigator?RV10-List
href="http://forums.matronics.com">http://forums.matronics.com
[b]
| | - The Matronics RV10-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?RV10-List |
|
|
|
| Back to top |
|
|
speckter(at)comcast.net
Guest
|
| Posted: Wed Mar 28, 2007 8:03 am Post subject: Jack photos |
|
|

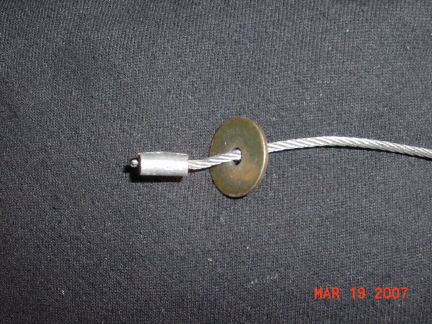

Stability is not an issue. Actually without the wing on I can lift the plane with just a 3 foot board. By the way I used a 3/32 cable and had to flatten the nicropress slightly to get it to slide through after I put on the clear shrink tube.
Gary
40274
From: owner-rv10-list-server(at)matronics.com [mailto:owner-rv10-list-server(at)matronics.com] On Behalf Of John Jessen
Sent: Wednesday, March 28, 2007 11:50 AM
To: rv10-list(at)matronics.com
Subject: RE: FW: Jack photos
What a great idea! Looks like it might be a little unsteady side to side. Is that an issue at all?
John Jessen
40328
From: owner-rv10-list-server(at)matronics.com [mailto:owner-rv10-list-server(at)matronics.com] On Behalf Of linn Walters
Sent: Wednesday, March 28, 2007 9:18 AM
To: rv10-list(at)matronics.com
Subject: Re: FW: Jack photos
Now that's the slickest thing I've seen in a long while!!!
Amazing how the simplest things escape us!
Linn
do not archive
gary wrote:
From: Gary Specketer [mailto:gspecketer(at)hotmail.com (gspecketer(at)hotmail.com)]
Sent: Wednesday, March 28, 2007 8:38 AM
To: speckter(at)comcast.net (speckter(at)comcast.net)
Subject: FW: Jack photos
Here are some pictures of a simple jack. It can be carried on the plane and weighs only a few ounces. It consists of a 24” cable that is dropped between the break disc and the wheel pant mounting plate. For your home base you can get fancier for the blocks and lever, but this loop allows you to have it with the plane at all times.
| Quote: | | href="http://www.matronics.com/Navigator?RV10-List">http://www.matronics.com/Navigator?RV10-Listhref="http://forums.matronics.com">http://forums.matronics.com |
0123456789
[quote][b]
| | - The Matronics RV10-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?RV10-List |
|
|
|
| Back to top |
|
|
jjessen
Joined: 22 Apr 2006
Posts: 285
Location: OR
|
| Posted: Wed Mar 28, 2007 8:24 am Post subject: Jack photos |
|
|
That's right. The other wheel is on the ground, so side-to-side movement, if any, is a none factor.
John
40328
do not archive
From: owner-rv10-list-server(at)matronics.com [mailto:owner-rv10-list-server(at)matronics.com] On Behalf Of gary
Sent: Wednesday, March 28, 2007 9:04 AM
To: rv10-list(at)matronics.com
Subject: RE: FW: Jack photos
Stability is not an issue. Actually without the wing on I can lift the plane with just a 3 foot board. By the way I used a 3/32 cable and had to flatten the nicropress slightly to get it to slide through after I put on the clear shrink tube.
Gary
40274
From: owner-rv10-list-server(at)matronics.com [mailto:owner-rv10-list-server(at)matronics.com] On Behalf Of John Jessen
Sent: Wednesday, March 28, 2007 11:50 AM
To: rv10-list(at)matronics.com
Subject: RE: FW: Jack photos
What a great idea! Looks like it might be a little unsteady side to side. Is that an issue at all?
John Jessen
40328
From: owner-rv10-list-server(at)matronics.com [mailto:owner-rv10-list-server(at)matronics.com] On Behalf Of linn Walters
Sent: Wednesday, March 28, 2007 9:18 AM
To: rv10-list(at)matronics.com
Subject: Re: FW: Jack photos
Now that's the slickest thing I've seen in a long while!!!
Amazing how the simplest things escape us!
Linn
do not archive
gary wrote:
From: Gary Specketer [mailto:gspecketer(at)hotmail.com (gspecketer(at)hotmail.com)]
Sent: Wednesday, March 28, 2007 8:38 AM
To: speckter(at)comcast.net (speckter(at)comcast.net)
Subject: FW: Jack photos
Here are some pictures of a simple jack. It can be carried on the plane and weighs only a few ounces. It consists of a 24” cable that is dropped between the break disc and the wheel pant mounting plate. For your home base you can get fancier for the blocks and lever, but this loop allows you to have it with the plane at all times.
| Quote: | | href="http://www.matronics.com/Navigator?RV10-List">http://www.matronics.com/Navigator?RV10-Listhref="http://forums.matronics.com">http://forums.matronics.com |
01234
5 [quote][b]
| | - The Matronics RV10-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?RV10-List |
|
|
|
| Back to top |
|
|
|
|
