Aileron pushrod holes

Matronics Email Lists Forum Index -> RV10-List

View previous topic :: View next topic

Author Message

william(at)gbta.net
Guest

Posted: Sun Mar 22, 2009 3:47 pm Post subject: Aileron pushrod holes

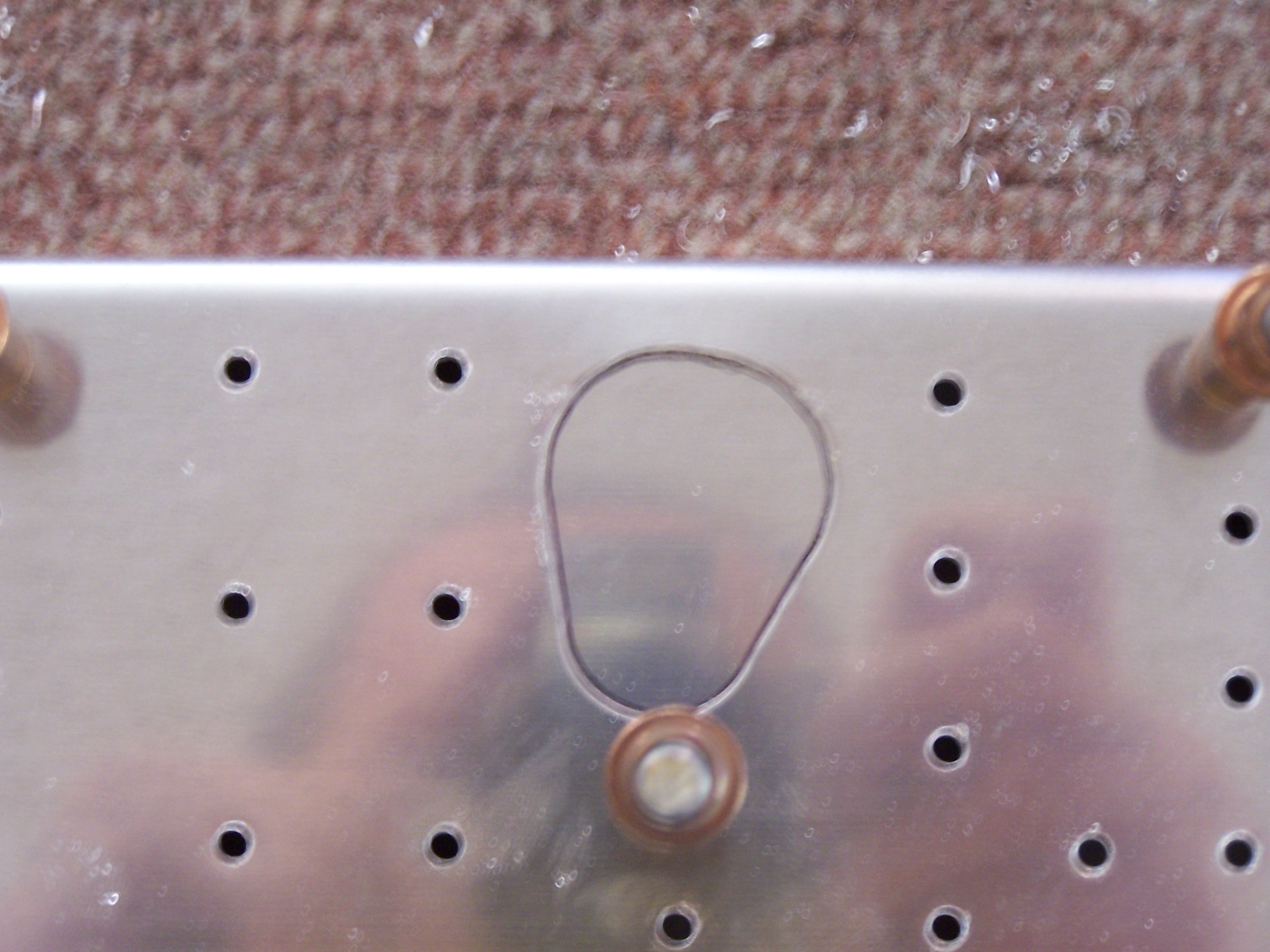

Today I started working on the rear wing  spars.  The instructions show a "squared" hole to be cut into the W-1007D  doubler plate however the hole in my rear spar is actually a "teardrop"  shape.  Am I to modify the hole in the spar or simply copy the shape in the  spar?  A picture is attached.



 Also, the doubler plates overhang the slot cut into  the spar (slot is for the flap brackets I assume) just a little.  Do I need  to trim the doubler plates to the slot in the spar??  Another picture is  attached.

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List


Description:

Filesize:

524.41 KB

Viewed:

1553 Time(s)


Description:

Filesize:

450.37 KB

Viewed:

1553 Time(s)

rene(at)felker.com
Guest

Posted: Sun Mar 22, 2009 4:21 pm Post subject: Aileron pushrod holes

Just off of memory.  The teardrop is an improvement so the rivet from the aileron connecting rod can not get caught.  Match the holes…..just my old memory at work.  If you check the archives I think you can find some discussion on the interference problem.



Rene' Felker

RV-10 N423CF Flying



801-721-6080

From: owner-rv10-list-server(at)matronics.com [mailto:owner-rv10-list-server(at)matronics.com] On Behalf Of Bill and Tami Britton

 Sent: Sunday, March 22, 2009 5:43 PM

 To: rv10-list(at)matronics.com

 Subject: Aileron pushrod holes







Today I started working on the rear wing spars.  The instructions show a "squared" hole to be cut into the W-1007D doubler plate however the hole in my rear spar is actually a "teardrop" shape.  Am I to modify the hole in the spar or simply copy the shape in the spar?  A picture is attached.







Also, the doubler plates overhang the slot cut into the spar (slot is for the flap brackets I assume) just a little.  Do I need to trim the doubler plates to the slot in the spar??  Another picture is attached.



       [quote][b]

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List

LarryRosen

Joined: 16 Jan 2006
Posts: 415
Location: Medford, NJ

Posted: Mon Mar 23, 2009 8:12 am Post subject: Aileron pushrod holes

That is the shape of the hole in my quick build wings.

I will send you a photo off list.

Larry Rosen

#356



Bill and Tami Britton wrote:

 	  Quote:
		   Today I started working on the rear wing spars.  The instructions show

 a "squared" hole to be cut into the W-1007D doubler plate however the

 hole in my rear spar is actually a "teardrop" shape.  Am I to modify

 the hole in the spar or simply copy the shape in the spar?  A picture

 is attached.



 Also, the doubler plates overhang the slot cut into the spar (slot is

 for the flap brackets I assume) just a little.  Do I need to trim the

 doubler plates to the slot in the spar??  Another picture is attached.

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List

_________________
Larry Rosen
#40356
N205EN (reserved)
