Posted: Wed May 13, 2009 9:49 am Post subject: Photos of Van's Strobe sidewall mount?

Does anyone have any installed or even not installed

photos of Van's sidewall mount for the tailcone where

you can mount the strobe supply to the wall?



--

Tim Olson - RV-10 N104CD

do not archive

jesse(at)saintaviation.co
Guest

Posted: Wed May 13, 2009 10:19 am Post subject: Photos of Van's Strobe sidewall mount?

Jesse Saint

Saint Aviation, Inc.

jesse(at)saintaviation.com

Cell: 352-427-0285

Fax: 815-377-3694



On May 13, 2009, at 1:49 PM, Tim Olson wrote:



 	  Quote:




 Does anyone have any installed or even not installed

 photos of Van's sidewall mount for the tailcone where

 you can mount the strobe supply to the wall?



 --

 Tim Olson - RV-10 N104CD

 do not archive


Description:

Filesize:

127.87 KB

Viewed:

4497 Time(s)

Bob Turner

Joined: 03 Jan 2009
Posts: 885
Location: Castro Valley, CA

Posted: Wed May 13, 2009 10:47 am Post subject: Re: Photos of Van's Strobe sidewall mount?

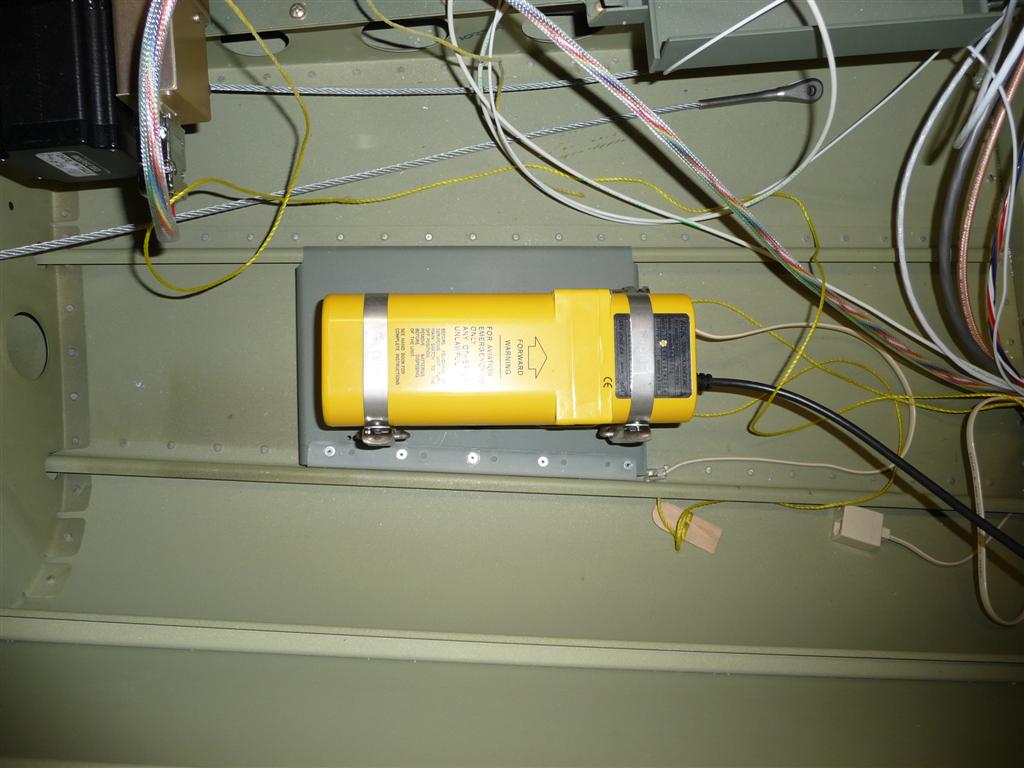

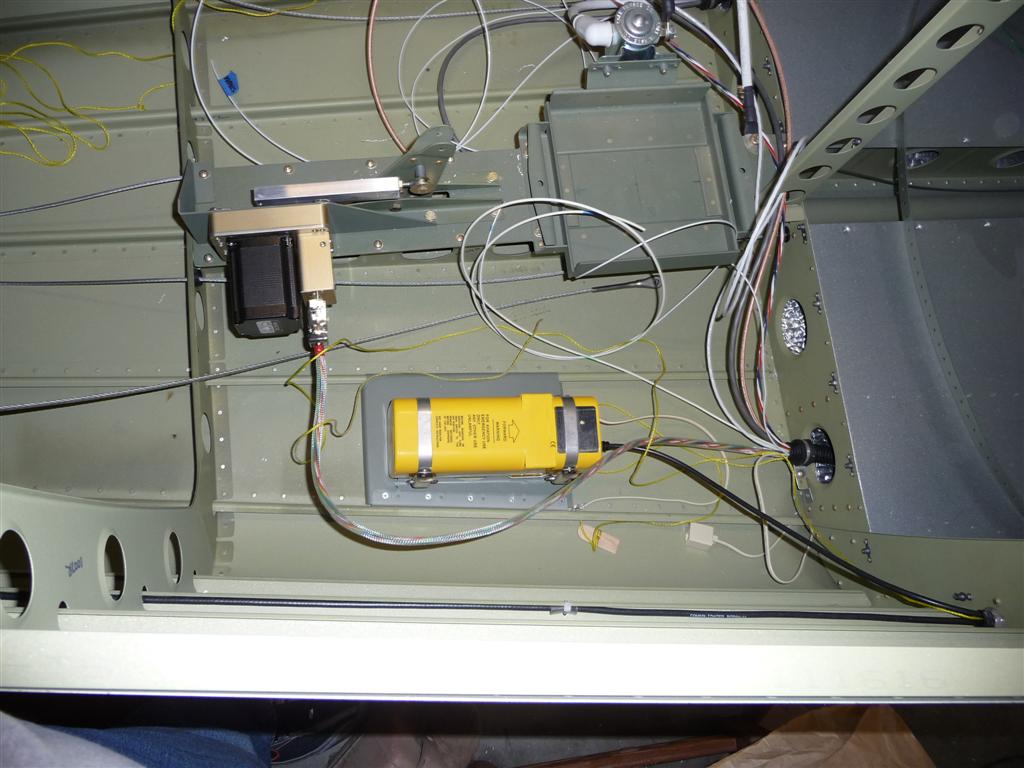

photos attached.


Description:

Filesize:

1.23 MB

Viewed:

4487 Time(s)


Description:

Filesize:

1.25 MB

Viewed:

4487 Time(s)

_________________
Bob Turner
RV-10 QB

Tim Olson

Joined: 25 Jan 2007
Posts: 2882

Posted: Wed May 13, 2009 11:04 am Post subject: Photos of Van's Strobe sidewall mount?

Thanks Jesse.  From you and another I've kind of answered my

question.  That piece must fit between the stringers in

a taper so that it fits perfectly.  But if I choose to mount

it lower to the floor, it may not do what I need, so I may

as well fashion my own.

Tim Olson - RV-10 N104CD

do not archive

Jesse Saint wrote:

 	  Quote:

 Jesse Saint

 Saint Aviation, Inc.

 jesse(at)saintaviation.com

 Cell: 352-427-0285

 Fax: 815-377-3694

 On May 13, 2009, at 1:49 PM, Tim Olson wrote:

>

>

> Does anyone have any installed or even not installed

> photos of Van's sidewall mount for the tailcone where

> you can mount the strobe supply to the wall?

>

> --

> Tim Olson - RV-10 N104CD

> do not archive

>

>

daveleikam(at)wi.rr.com
Guest

Posted: Wed May 13, 2009 11:04 am Post subject: Photos of Van's Strobe sidewall mount?

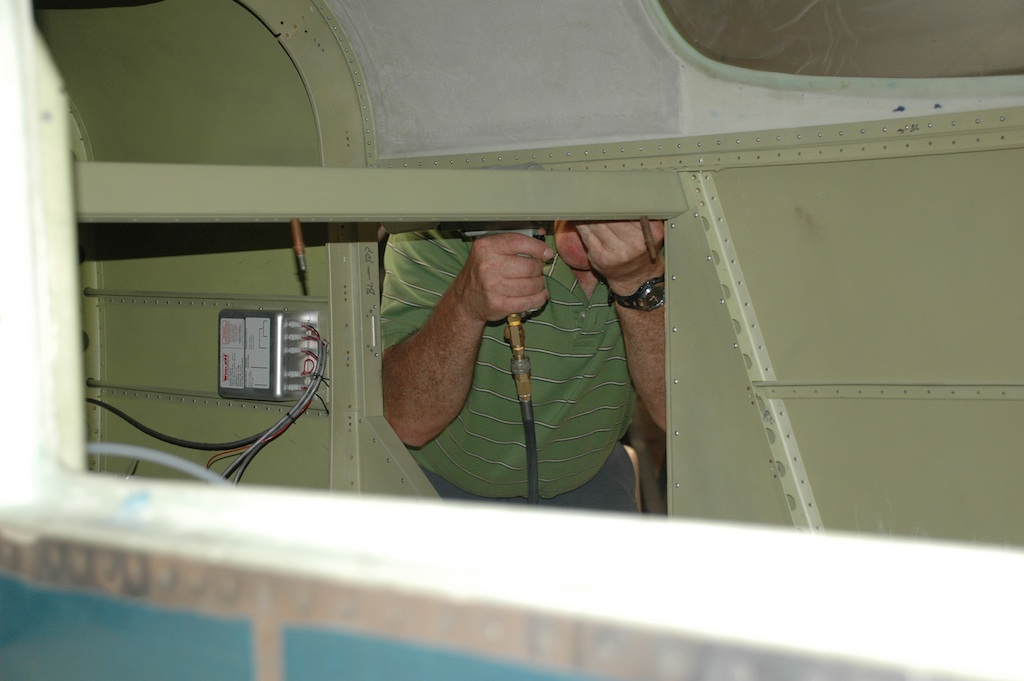

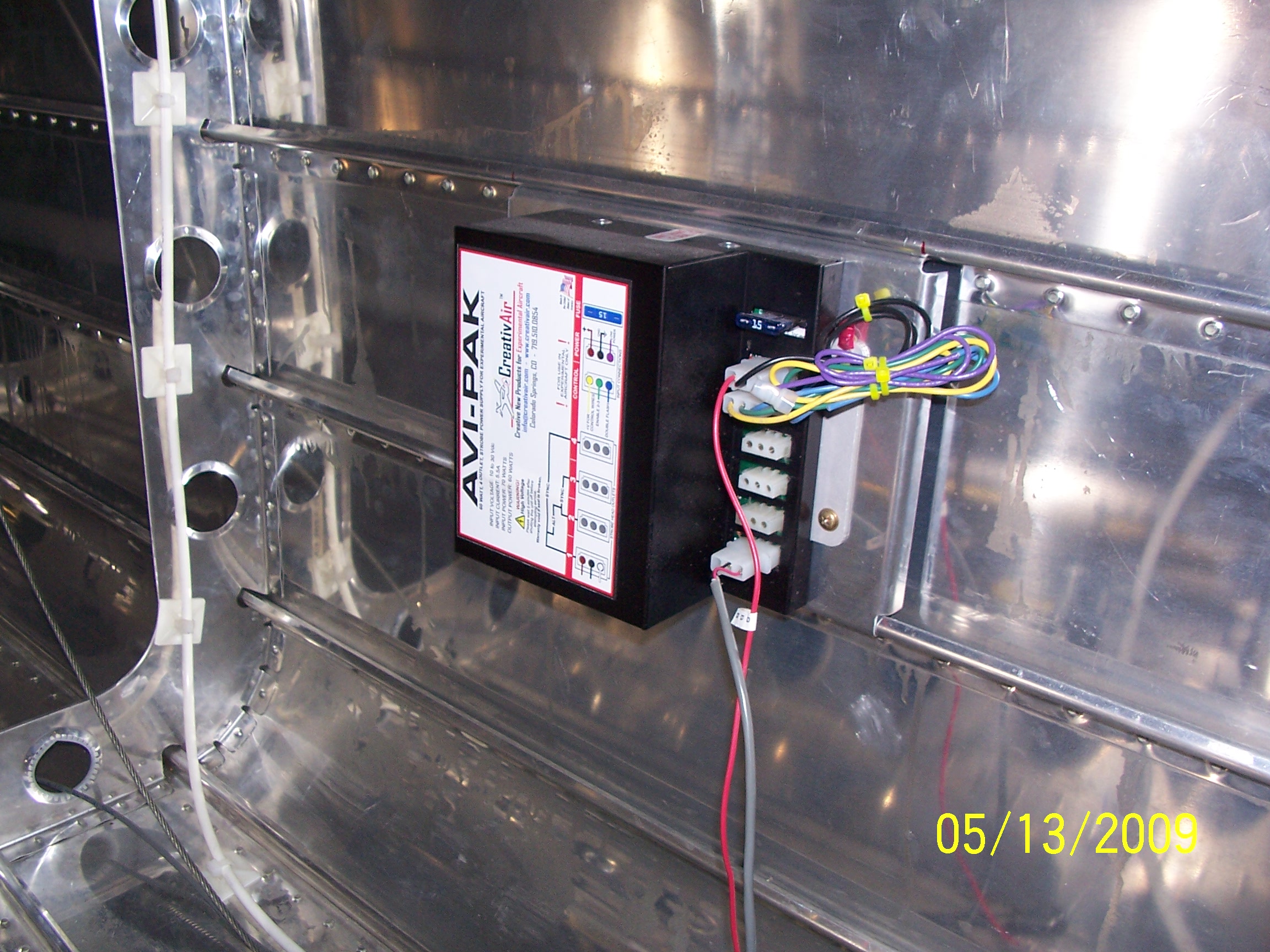

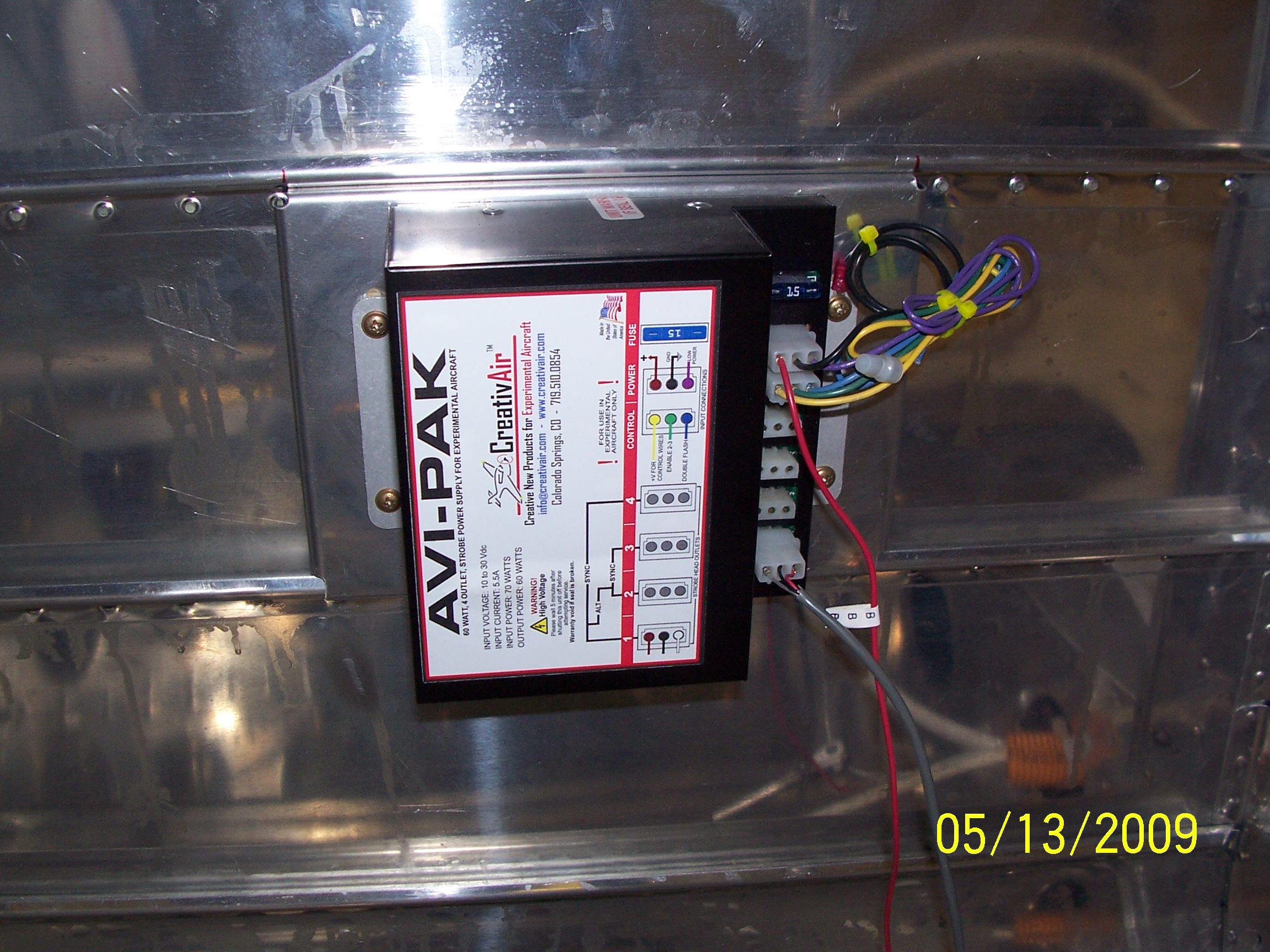

Here are some.



Dave Leikam

RV-10 #40496

N89DA (Reserved)

Muskego, WI



---


Description:

Filesize:

902.68 KB

Viewed:

4484 Time(s)


Description:

Filesize:

891.52 KB

Viewed:

4484 Time(s)

dlm46007(at)cox.net
Guest

Posted: Wed May 13, 2009 11:19 am Post subject: Photos of Van's Strobe sidewall mount?

We fashioned our own and placed on the floor adjacent left side of

batteries. We made our own bracket and riveted to he floor tied into the

edges of two Z channels





--

Tim Olson

Joined: 25 Jan 2007
Posts: 2882

Posted: Wed May 13, 2009 11:51 am Post subject: Photos of Van's Strobe sidewall mount?

Yeah, this is for mounting the NavWorx receiver semi-permanently.

I don't mind riveting into the floors stringers, but I don't have

a lot of floor room left in the area and i'm hoping to do it

without any external painted rivets to deal with.  I've got

one method that I may use instead, using their included bracket,

but for many installs I think a nice sidewall install like

the strobe pack would be great.  Things have been working

great with their box, so it's time to move it from a more

temporary place to something that I'll use in the long term.



Tim Olson - RV-10 N104CD

do not archive

David McNeill wrote:

[quote]



 We fashioned our own and placed on the floor adjacent left side of

 batteries. We made our own bracket and riveted to he floor tied into the

 edges of two Z channels





 --

bwestfall

Joined: 22 Oct 2008
Posts: 131
Location: Portland, OR

Posted: Wed May 13, 2009 12:35 pm Post subject: Photos of Van's Strobe sidewall mount?

I modified one of the strobe/elt mount brackets to fit along the floor

attaching it to two of the J-Channel.  I cut the end off parallel to the

J-Channel and used a piece of angle pop-riveted to the strobe bracket.



I suppose it would have been pretty easy to make one from scratch but making

the bends is sorta tough with hand seamers.  I don't have any kind of a

brake.  Van's is close (20min) for me so no shipping.  The brackets are

pretty cheap.



Picture attached.



-Ben

--


Description:

Filesize:

104.11 KB

Viewed:

4474 Time(s)


Description:

Filesize:

93.81 KB

Viewed:

4474 Time(s)

Tim Olson

Joined: 25 Jan 2007
Posts: 2882

Posted: Thu May 14, 2009 7:25 pm Post subject: Photos of Van's Strobe sidewall mount?

Thanks for all of the great pics and stuff along the way guys.

That Van's plate would come in handy for mounting a bunch of

things.  Wish they'd have had them when I built mine.  But, it

wouldn't have been perfect for my needs anyway.  I did get it

done last night though, and here is the result:



http://www.myrv10.com/N104CD/upgrades/20090513/index.html



The big difference is, I needed something easily removable.

Tim Olson - RV-10 N104CD



Ben Westfall wrote:

[quote] I modified one of the strobe/elt mount brackets to fit along the floor

 attaching it to two of the J-Channel.  I cut the end off parallel to the

 J-Channel and used a piece of angle pop-riveted to the strobe bracket.



 I suppose it would have been pretty easy to make one from scratch but making

 the bends is sorta tough with hand seamers.  I don't have any kind of a

 brake.  Van's is close (20min) for me so no shipping.  The brackets are

 pretty cheap.



 Picture attached.



 -Ben





 --

jesse(at)saintaviation.co
Guest

Posted: Fri May 15, 2009 3:20 am Post subject: Photos of Van's Strobe sidewall mount?

That's definitely a better solution if you need flexibility down the

road.



Do not archive



Jesse Saint

Saint Aviation

jesse(at)saintaviation.com

352-427-0285



Sent from my iPhone



On May 14, 2009, at 11:24 PM, Tim Olson <Tim(at)MyRV10.com> wrote:



[quote]



 Thanks for all of the great pics and stuff along the way guys.

 That Van's plate would come in handy for mounting a bunch of

 things.  Wish they'd have had them when I built mine.  But, it

 wouldn't have been perfect for my needs anyway.  I did get it

 done last night though, and here is the result:



 http://www.myrv10.com/N104CD/upgrades/20090513/index.html



 The big difference is, I needed something easily removable.

 Tim Olson - RV-10 N104CD



 Ben Westfall wrote:

> I modified one of the strobe/elt mount brackets to fit along the

> floor

> attaching it to two of the J-Channel.  I cut the end off parallel

> to the

> J-Channel and used a piece of angle pop-riveted to the strobe

> bracket.  I suppose it would have been pretty easy to make one from

> scratch but making

> the bends is sorta tough with hand seamers.  I don't have any kind

> of a

> brake.  Van's is close (20min) for me so no shipping.  The brackets

> are

> pretty cheap.

> Picture attached.

> -Ben

> --
