 Posted: Mon Dec 08, 2008 5:21 pm Post subject: Andair Valve Installation |
 |
|
I'm installing my Andair Valve under a plate at the top of the
tunnel... essentially the same location as Vans intended for their
valve except flush to the tunnel cover. I'm routing the scat tube
under the valve and between the fuel lines. I'll cut a hole in the
tunnel cover to the size of the Indicator Plate so the cover can be
removed without disturbing the valve.
For those with a similar installation (I think Deems may be one),
what type of screw are you using to attach the Indicator Plate,
through the mounting plate and valve and into the K1000-3 nutplates?
Do you have a spec to save me some hunting around?
Jeff Carpenter
40304
I think I've just started that 90% done 90% to go construction phase
| | - The Matronics RV10-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?RV10-List |
|
|
|
| Back to top |
|
 |
greghale
Joined: 10 Jan 2007
Posts: 91
Location: Tulsa, Oklahoma
|
| Posted: Mon Dec 08, 2008 5:57 pm Post subject: Re: Andair Valve Installation |
|
|
I used #8 screws and nut plates. I had to order a another valve with the extension to fit my console installation. The original valve I bought is for sale if any one is interested -- http://www.nwacaptain.com/4sale.html
Greg...
| | - The Matronics RV10-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?RV10-List |
|
_________________
Greg Hale rv10 -- N210KH
www.nwacaptain.com |
|
| Back to top |
|
|
Deems Davis
Joined: 09 Jan 2006
Posts: 925
|
| Posted: Mon Dec 08, 2008 6:17 pm Post subject: Andair Valve Installation |
|
|
I ended up using some stainless steel hex head screws (Ace Hdware),
mostly because I couldn't readily get any of the Phillips button head
screws long enough.
Deems
Jeff Carpenter wrote:
| Quote: |
I'm installing my Andair Valve under a plate at the top of the
tunnel... essentially the same location as Vans intended for their
valve except flush to the tunnel cover. I'm routing the scat tube
under the valve and between the fuel lines. I'll cut a hole in the
tunnel cover to the size of the Indicator Plate so the cover can be
removed without disturbing the valve.
For those with a similar installation (I think Deems may be one), what
type of screw are you using to attach the Indicator Plate, through the
mounting plate and valve and into the K1000-3 nutplates? Do you have
a spec to save me some hunting around?
Jeff Carpenter
40304
I think I've just started that 90% done 90% to go construction phase
|
| | - The Matronics RV10-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?RV10-List |
|
|
|
| Back to top |
|
|
partner14
Joined: 12 Jan 2008
Posts: 540
Location: Granbury Texas
|
| Posted: Mon Dec 08, 2008 6:18 pm Post subject: Andair Valve Installation |
|
|

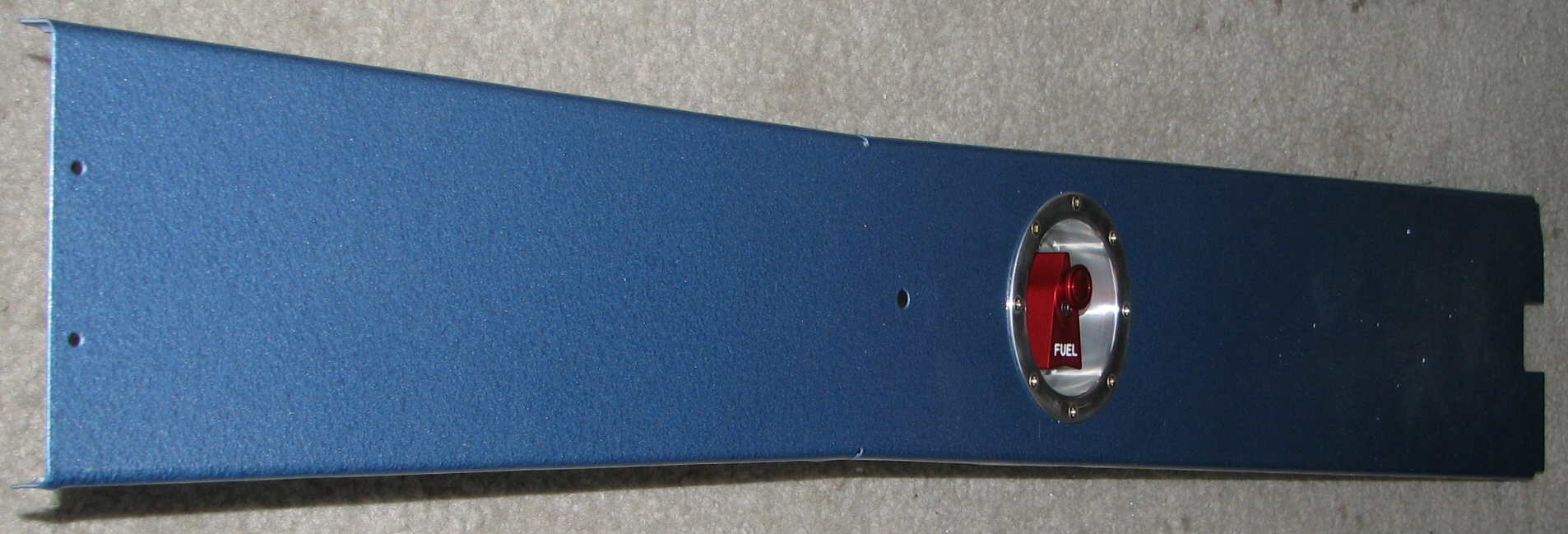

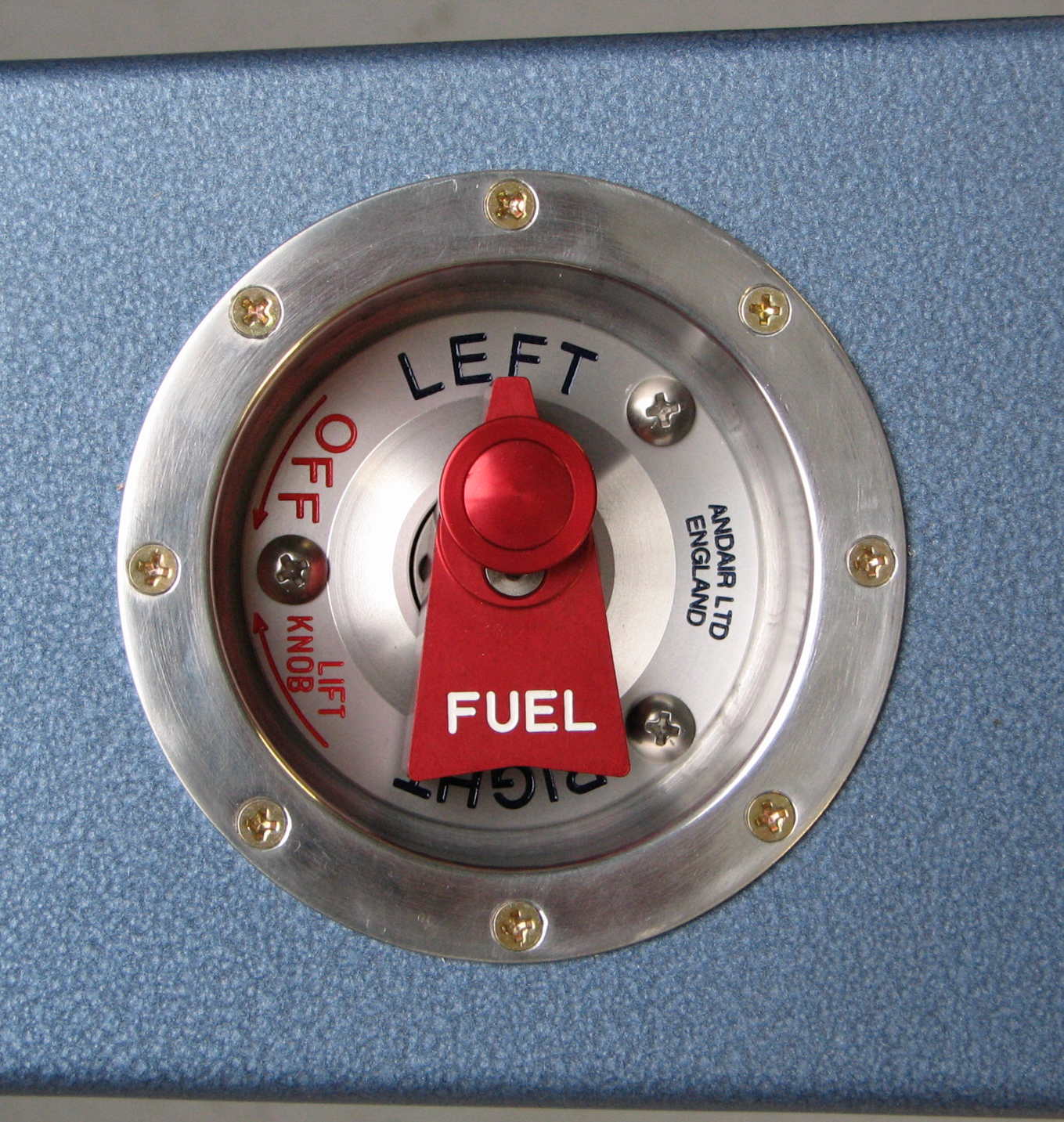

Here's what I did... and we made enough pieces to weld up 10. I finished the install, and it looks great. Routing of the scat was easy. Used Van's bridge to support a connector. Will take pics tomorrow.
Don McDonald
#40536
--- On Mon, 12/8/08, Jeff Carpenter <jeff(at)westcottpress.com> wrote:
| Quote: | From: Jeff Carpenter <jeff(at)westcottpress.com>
Subject: Andair Valve Installation
To: rv10-list(at)matronics.com
Date: Monday, December 8, 2008, 5:20 PM
| Quote: | --> RV10-List message posted by: Jeff Carpenter
<jeff(at)westcottpress.com>
I'm installing my Andair Valve under a plate at the top of the tunnel...
essentially the same location as Vans intended for their valve except flush to
the tunnel cover. I'm routing the scat tube under the valve and between the
fuel lines. I'll cut a hole in the tunnel cover to the size of the
Indicator Plate so the cover can be removed without disturbing the valve.
For those with a similar installation (I think Deems may be one), what type of
screw are you using to attach the Indicator Plate, through the mounting plate
and valve and into the K1000-3 nutplates? Do you have a spec to save me some
hunting around?
Jeff Carpenter
40304
I think I've just started that 90% done 90% to go construction phase
|
|
| | - The Matronics RV10-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?RV10-List |
|
| Description: |
|
| Filesize: |
229.03 KB |
| Viewed: |
254 Time(s) |
|
| Description: |
|
| Filesize: |
103.66 KB |
| Viewed: |
255 Time(s) |
|
_________________
Don A. McDonald
40636 |
|
| Back to top |
|
|
partner14
Joined: 12 Jan 2008
Posts: 540
Location: Granbury Texas
|
| Posted: Mon Dec 08, 2008 6:22 pm Post subject: Andair Valve Installation |
|
|
Also, where I mounted mine was 5" forward of the Van's valve location. Moving it forward not only got it further out of the way, but the tunnel is wider and the valve fits perfectly in the center... of course, being recessed also created more room.
Don McDonald.
--- On Mon, 12/8/08, Jeff Carpenter <jeff(at)westcottpress.com> wrote:
| Quote: | From: Jeff Carpenter <jeff(at)westcottpress.com>
Subject: Andair Valve Installation
To: rv10-list(at)matronics.com
Date: Monday, December 8, 2008, 5:20 PM
| Quote: | --> RV10-List message posted by: Jeff Carpenter
<jeff(at)westcottpress.com>
I'm installing my Andair Valve under a plate at the top of the tunnel...
essentially the same location as Vans intended for their valve except flush to
the tunnel cover. I'm routing the scat tube under the valve and between the
fuel lines. I'll cut a hole in the tunnel cover to the size of the
Indicator Plate so the cover can be removed without disturbing the valve.
For those with a similar installation (I think Deems may be one), what type of
screw are you using to attach the Indicator Plate, through the mounting plate
and valve and into the K1000-3 nutplates? Do you have a spec to save me some
hunting around?
Jeff Carpenter
40304
I think I've just started that 90% done 90% to go construction phase
|
|
[quote][b]
| | - The Matronics RV10-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?RV10-List |
|
_________________
Don A. McDonald
40636 |
|
| Back to top |
|
|
robin1(at)mrmoisture.com
Guest
|
| Posted: Mon Dec 08, 2008 8:01 pm Post subject: Andair Valve Installation |
|
|
Don,
That application looks really nice! If you have any more of those metal cups you can use them to hold your beer.
We cut up an Cleveland wheel disk that was hanging around and mounted the valve in the center of the cup.
Robin
From: owner-rv10-list-server(at)matronics.com [mailto:owner-rv10-list-server(at)matronics.com] On Behalf Of Don McDonald
Sent: Monday, December 08, 2008 6:18 PM
To: rv10-list(at)matronics.com
Subject: Re: Andair Valve Installation
Here's what I did... and we made enough pieces to weld up 10. I finished the install, and it looks great. Routing of the scat was easy. Used Van's bridge to support a connector. Will take pics tomorrow.
Don McDonald
#40536
--- On Mon, 12/8/08, Jeff Carpenter <jeff(at)westcottpress.com> wrote:
| Quote: |
From: Jeff Carpenter <jeff(at)westcottpress.com>
Subject: Andair Valve Installation
To: rv10-list(at)matronics.com
Date: Monday, December 8, 2008, 5:20 PM | Quote: | | --> RV10-List message posted by: Jeff Carpenter<jeff(at)westcottpress.com> I'm installing my Andair Valve under a plate at the top of the tunnel...essentially the same location as Vans intended for their valve except flush tothe tunnel cover. I'm routing the scat tube under the valve and between thefuel lines. I'll cut a hole in the tunnel cover to the size of theIndicator Plate so the cover can be removed without disturbing the valve. For those with a similar installation (I think Deems may be one), what type of<jeff(at)westcottpress.com> |
0 | Quote: | | <jeff(at)westcottpress.com> |
1 | Quote: | | <jeff(at)westcottpress.com> |
2 | Quote: | | <jeff(at)westcottpress.com> |
3 | Quote: | | <jeff(at)westcottpress.com> |
4 | Quote: | | <jeff(at)westcottpress.com> |
5 | Quote: | | <jeff(at)westcottpress.com> |
6 | Quote: | | <jeff(at)westcottpress.com> |
7 | Quote: | | <jeff(at)westcottpress.com> |
8 | Quote: | | <jeff(at)westcottpress.com> |
9 |
| | - The Matronics RV10-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?RV10-List |
|
| Description: |
|
| Filesize: |
150.04 KB |
| Viewed: |
267 Time(s) |
|
|
|
| Back to top |
|
|
partner14
Joined: 12 Jan 2008
Posts: 540
Location: Granbury Texas
|
| Posted: Mon Dec 08, 2008 8:55 pm Post subject: Andair Valve Installation |
|
|
Don't need em' for that... I bought some of those A&W cup holders..... you know... ya just roll down the window and hang em'.
--- On Mon, 12/8/08, Robin Marks <robin1(at)mrmoisture.com> wrote:
| Quote: | From: Robin Marks <robin1(at)mrmoisture.com>
Subject: RE: Andair Valve Installation
To: rv10-list(at)matronics.com
Date: Monday, December 8, 2008, 8:00 PM
Don,
That application looks really nice! If you have any more of those metal cups you can use them to hold your beer.
We cut up an Cleveland wheel disk that was hanging around and mounted the valve in the center of the cup.
Robin
From: owner-rv10-list-server(at)matronics.com [mailto:owner-rv10-list-server(at)matronics.com] On Behalf Of Don McDonald
Sent: Monday, December 08, 2008 6:18 PM
To: rv10-list(at)matronics.com
Subject: Re: Andair Valve Installation
Here's what I did... and we made enough pieces to weld up 10. I finished the install, and it looks great. Routing of the scat was easy. Used Van's bridge to support a connector. Will take pics tomorrow.
Don McDonald
#40536
--- On Mon, 12/8/08, Jeff Carpenter <jeff(at)westcottpress.com> wrote:
| Quote: |
From: Jeff Carpenter <jeff(at)westcottpress.com>
Subject: Andair Valve Installation
To: rv10-list(at)matronics.com
Date: Monday, December 8, 2008, 5:20 PM
| Quote: | | --> RV10-List message posted by: Jeff Carpenter<jeff(at)westcottpress.com> I'm installing my Andair Valve under a plate at the top of the tunnel...essentially the same location as Vans intended for their valve except flush tothe tunnel cover. I'm routing the scat tube under the valve and between thefuel lines. I'll cut a hole in the tunnel cover to the size of theIndicator Plate so the cover can be removed without disturbing the valve. For those with a similar installation (I think Deems may be one), what type of<jeff(at)westcottpress.com> |
0 | Quote: | | <jeff(at)westcottpress.com> |
1 | Quote: | | <jeff(at)westcottpress.com> |
2 | Quote: | | <jeff(at)westcottpress.com> |
3 | Quote: | | <jeff(at)westcottpress.com> |
4 | Quote: | | <jeff(at)westcottpress.com> |
5 | Quote: | | <jeff(at)westcottpress.com> |
6 | Quote: | | <jeff(at)westcottpress.com> |
7 | Quote: | | <jeff(at)westcottpress.com> |
8 | Quote: | | <jeff(at)westcottpress.com> |
9 |
|
[quote][b]
| | - The Matronics RV10-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?RV10-List |
|
_________________
Don A. McDonald
40636 |
|
| Back to top |
|
|
dlm46007(at)cox.net
Guest
|
| Posted: Mon Dec 08, 2008 9:11 pm Post subject: Andair Valve Installation |
|
|
you might consider segmenting the tunnel cover; it makes it very easy to inspect beneath without a lot of disassembly
From: owner-rv10-list-server(at)matronics.com [mailto:owner-rv10-list-server(at)matronics.com] On Behalf Of Robin Marks
Sent: Monday, December 08, 2008 9:01 PM
To: rv10-list(at)matronics.com
Subject: RE: Andair Valve Installation
Don,
That application looks really nice! If you have any more of those metal cups you can use them to hold your beer.
We cut up an Cleveland wheel disk that was hanging around and mounted the valve in the center of the cup.
Robin
From: owner-rv10-list-server(at)matronics.com [mailto:owner-rv10-list-server(at)matronics.com] On Behalf Of Don McDonald
Sent: Monday, December 08, 2008 6:18 PM
To: rv10-list(at)matronics.com
Subject: Re: Andair Valve Installation
Here's what I did... and we made enough pieces to weld up 10. I finished the install, and it looks great. Routing of the scat was easy. Used Van's bridge to support a connector. Will take pics tomorrow.
Don McDonald
#40536
--- On Mon, 12/8/08, Jeff Carpenter <jeff(at)westcottpress.com> wrote:
| Quote: |
From: Jeff Carpenter <jeff(at)westcottpress.com>
Subject: Andair Valve Installation
To: rv10-list(at)matronics.com
Date: Monday, December 8, 2008, 5:20 PM | Quote: | | --> RV10-List message posted by: Jeff Carpenter<jeff(at)westcottpress.com> I'm installing my Andair Valve under a plate at the top of the tunnel...essentially the same location as Vans intended for their valve except flush tothe tunnel cover. I'm routing the scat tube under the valve and between thefuel lines. I'll cut a hole in the tunnel cover to the size of theIndicator Plate so the cover can be removed without disturbing the valve. For those with a similar installation (I think Deems may be one), what type of<jeff(at)westcottpress.com> |
0 | Quote: | | <jeff(at)westcottpress.com> |
1 | Quote: | | <jeff(at)westcottpress.com> |
2 | Quote: | | <jeff(at)westcottpress.com> |
3 | Quote: | | <jeff(at)westcottpress.com> |
4 | Quote: | | <jeff(at)westcottpress.com> |
5 | Quote: | | <jeff(at)westcottpress.com> |
6 | Quote: | | <jeff(at)westcottpress.com> |
7 | Quote: | | <jeff(at)westcottpress.com> |
8 | Quote: | | <jeff(at)westcottpress.com> |
9 |
[quote][b]
| | - The Matronics RV10-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?RV10-List |
|
|
|
| Back to top |
|
|
robin1(at)mrmoisture.com
Guest
|
| Posted: Mon Dec 08, 2008 9:45 pm Post subject: Andair Valve Installation |
|
|
We have since that photo was taken.
Thanks,
Robin
Do Not Archive
From: owner-rv10-list-server(at)matronics.com [mailto:owner-rv10-list-server(at)matronics.com] On Behalf Of David McNeill
Sent: Monday, December 08, 2008 9:10 PM
To: rv10-list(at)matronics.com
Subject: RE: Andair Valve Installation
you might consider segmenting the tunnel cover; it makes it very easy to inspect beneath without a lot of disassembly
From: owner-rv10-list-server(at)matronics.com [mailto:owner-rv10-list-server(at)matronics.com] On Behalf Of Robin Marks
Sent: Monday, December 08, 2008 9:01 PM
To: rv10-list(at)matronics.com
Subject: RE: Andair Valve Installation
Don,
That application looks really nice! If you have any more of those metal cups you can use them to hold your beer.
We cut up an Cleveland wheel disk that was hanging around and mounted the valve in the center of the cup.
Robin
From: owner-rv10-list-server(at)matronics.com [mailto:owner-rv10-list-server(at)matronics.com] On Behalf Of Don McDonald
Sent: Monday, December 08, 2008 6:18 PM
To: rv10-list(at)matronics.com
Subject: Re: Andair Valve Installation
Here's what I did... and we made enough pieces to weld up 10. I finished the install, and it looks great. Routing of the scat was easy. Used Van's bridge to support a connector. Will take pics tomorrow.
Don McDonald
#40536
--- On Mon, 12/8/08, Jeff Carpenter <jeff(at)westcottpress.com> wrote:
| Quote: |
From: Jeff Carpenter <jeff(at)westcottpress.com>
Subject: Andair Valve Installation
To: rv10-list(at)matronics.com
Date: Monday, December 8, 2008, 5:20 PM | Quote: | | --> RV10-List message posted by: Jeff Carpenter<jeff(at)westcottpress.com> I'm installing my Andair Valve under a plate at the top of the tunnel...essentially the same location as Vans intended for their valve except flush tothe tunnel cover. I'm routing the scat tube under the valve and between thefuel lines. I'll cut a hole in the tunnel cover to the size of theIndicator Plate so the cover can be removed without disturbing the valve. For those with a similar installation (I think Deems may be one), what type of<jeff(at)westcottpress.com> |
0 | Quote: | | <jeff(at)westcottpress.com> |
1 | Quote: | | <jeff(at)westcottpress.com> |
2 | Quote: | | <jeff(at)westcottpress.com> |
3 | Quote: | | <jeff(at)westcottpress.com> |
4 | Quote: | | <jeff(at)westcottpress.com> |
5 | Quote: | | <jeff(at)westcottpress.com> |
6 | Quote: | | <jeff(at)westcottpress.com> |
7 | Quote: | | <jeff(at)westcottpress.com> |
8 | Quote: | | <jeff(at)westcottpress.com> |
9 |
0123456789 | Quote: | | I'm installing my Andair Valve under a plate at the top of the tunnel... |
0 | Quote: | | I'm installing my Andair Valve under a plate at the top of the tunnel... |
1 | Quote: | | I'm installing my Andair Valve under a plate at the top of the tunnel... |
2 | Quote: | | I'm installing my Andair Valve under a plate at the top of the tunnel... |
3 | Quote: | | I'm installing my Andair Valve under a plate at the top of the tunnel... |
4 | Quote: | | I'm installing my Andair Valve under a plate at the top of the tunnel... |
5 | Quote: | | I'm installing my Andair Valve under a plate at the top of the tunnel... |
6 | Quote: | | I'm installing my Andair Valve under a plate at the top of the tunnel... |
7 | Quote: | | I'm installing my Andair Valve under a plate at the top of the tunnel... |
8 | Quote: | | I'm installing my Andair Valve under a plate at the top of the tunnel... |
9 | Quote: | | essentially the same location as Vans intended for their valve except flush to |
0 | Quote: | | essentially the same location as Vans intended for their valve except flush to |
1 | Quote: | | essentially the same location as Vans intended for their valve except flush to |
2 | Quote: | | essentially the same location as Vans intended for their valve except flush to |
3
[quote][b]
| | - The Matronics RV10-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?RV10-List |
|
|
|
| Back to top |
|
|
|
|
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum
You cannot attach files in this forum
You can download files in this forum
|
Powered by phpBB © 2001, 2005 phpBB Group
|
Get Email Distribution Too!
FAQ
Search
Memberlist
Usergroups
Register
Profile
Log in to check your private messages
Log in
