Posted: Fri May 15, 2009 5:11 pm Post subject: Upper intersection leg fairing

I can't find any comments on Tim's or Deems site about how you construct the upper leg intersection fairing.

Are you applying the 2 layers of glass to each one?  If so, are you doing it on the plane?  If so, how are you holding it to the fuselage while applying the glass?



I have trimmed the fairings and drilled the 4 holes and clecoed them to the fuselage.  I am happy so far.  Now how do you add the glass while the clecos are holding the fairing in place?

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List

_________________
Gary Blankenbiller
RV10 - # 40674
(N2GB Flying)

Deems Davis

Joined: 09 Jan 2006
Posts: 925

Posted: Fri May 15, 2009 6:05 pm Post subject: Upper intersection leg fairing

I built them up with additional layers of glass before fitting to the

fuse. here's a link to a photo album:



http://deemsrv10.com/album/Sec%2048%20Gear%20Leg%20&%20Wheel%20Fairings/slides/DSC03905.html



follow the links on the left of the page to additional pictures.



Here's links to the build log:



http://deemsrv10.com/48-10&48-11.htm

http://deemsrv10.com/48-11&48-12.htm

I later decided to attach the lower intersection fairings directly to

the wheel pants, Additional pictures:



http://deemsrv10.com/album/Sec%2048%20Gear%20Leg%20&%20Wheel%20Fairings/slides/DSC04260.html



Note: I haven't installed these on the 'finished; aircraft yet

Deems

N519PJ 16.5 hrs



orchidman wrote:

 	  Quote:




 I can't find any comments on Tim's or Deems site about how you construct the upper leg intersection fairing.

 Are you applying the 2 layers of glass to each one?  If so, are you doing it on the plane?  If so, how are you holding it to the fuselage while applying the glass?



 I have trimmed the fairings and drilled the 4 holes and clecoed them to the fuselage.  I am happy so far.  Now how do you add the glass while the clecos are holding the fairing in place?  [Shocked]



 --------

 Gary Blankenbiller

 RV10 - # 40674

 Final Finishing - SB

 (N2GB registered)





 Read this topic online here:



 http://forums.matronics.com/viewtopic.php?p 44232#244232

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List

partner14

Joined: 12 Jan 2008
Posts: 540
Location: Granbury Texas

Posted: Fri May 15, 2009 9:40 pm Post subject: Upper intersection leg fairing

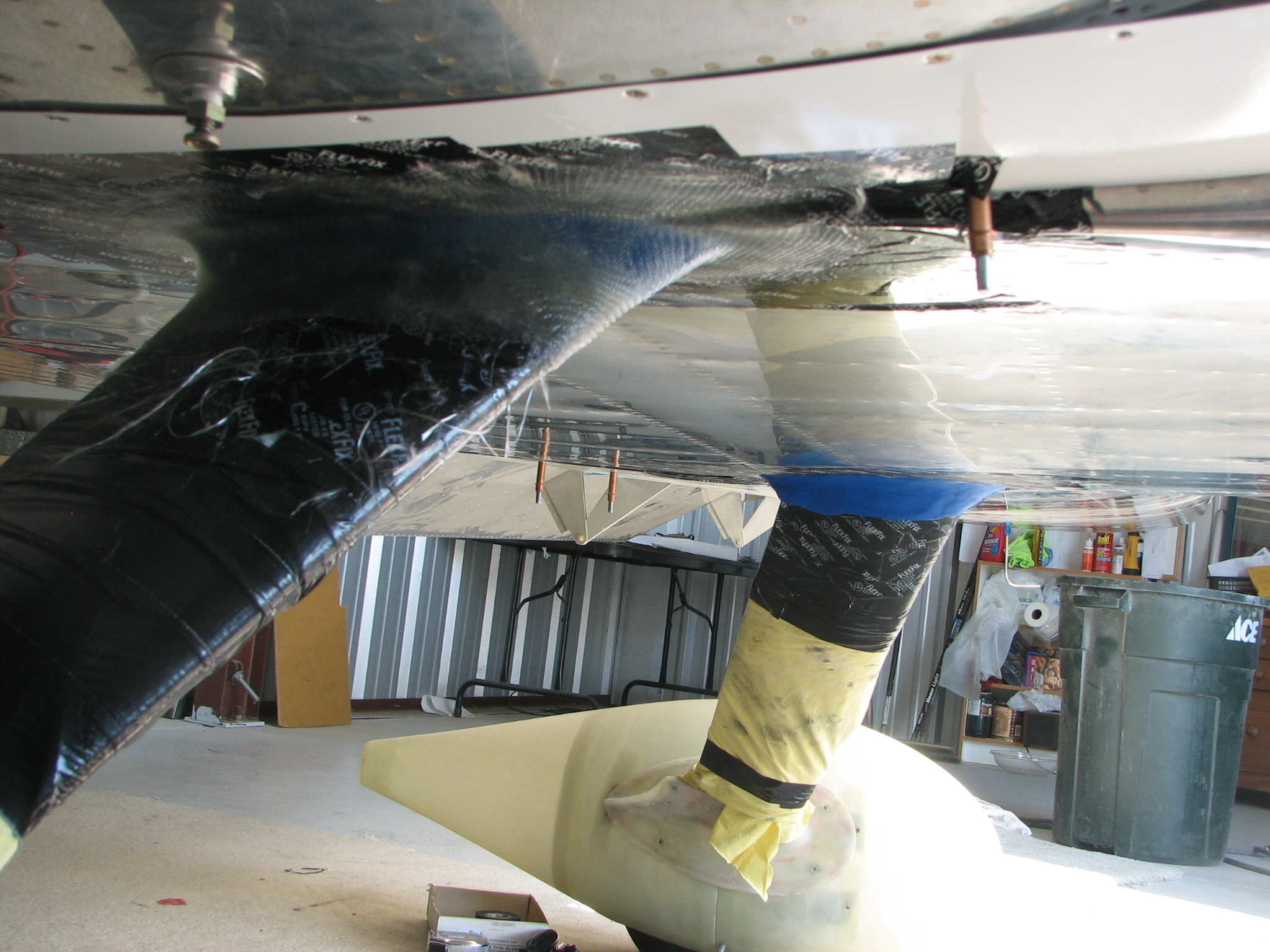

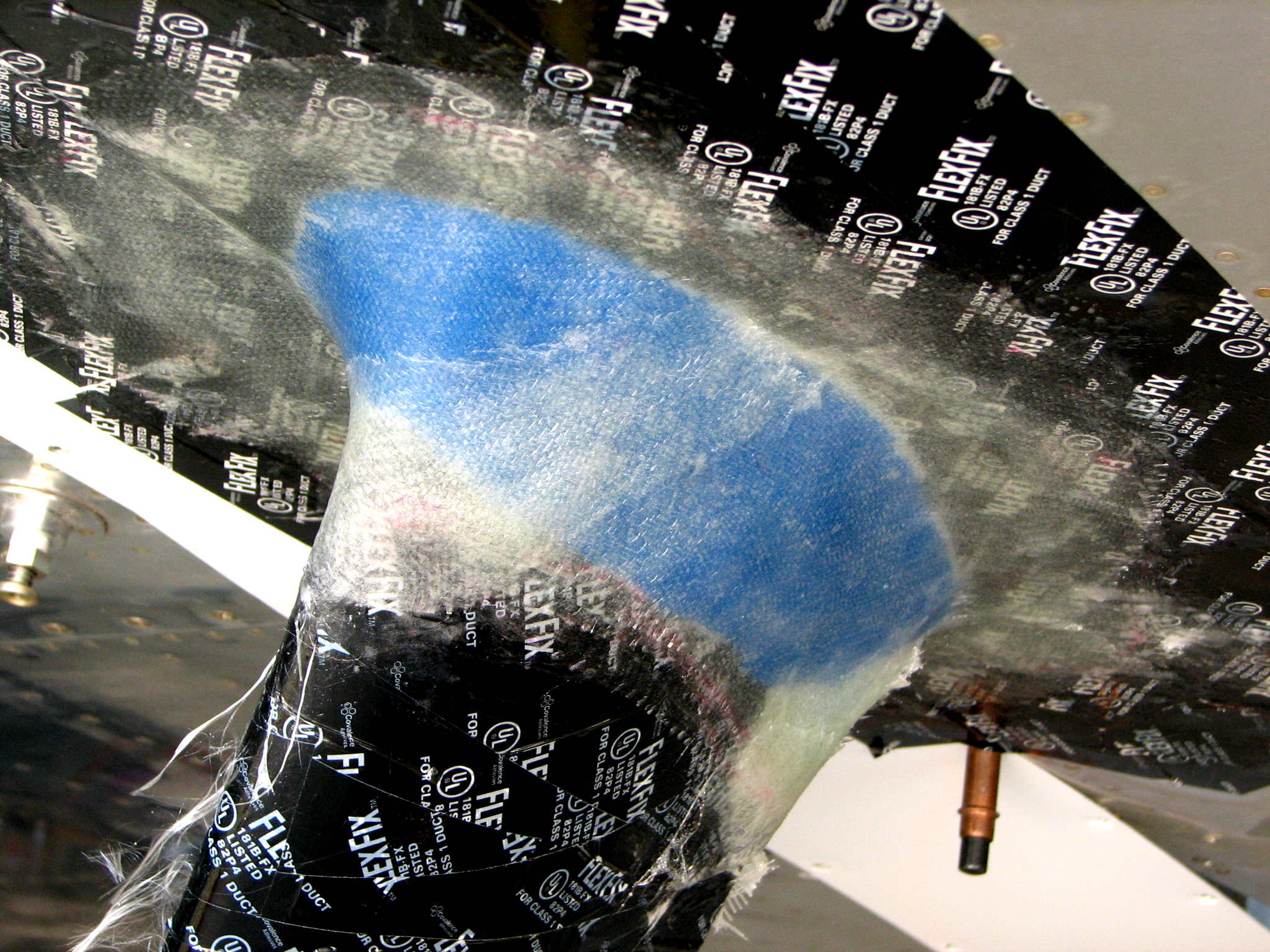

I didn't like the way the Van's uppers fit, so we built our own.

 Make sure you max the tape prior to applying the glass.

 Don McDonald



--- On Fri, 5/15/09, orchidman <gary(at)wingscc.com> wrote:



  	  Quote:


From: orchidman <gary(at)wingscc.com>

Subject: Upper intersection leg fairing

To: rv10-list(at)matronics.com

Date: Friday, May 15, 2009, 6:11 PM



 --> RV10-List message posted by: "orchidman" <gary(at)wingscc.com (gary(at)wingscc.com)>



I can't find any comments on Tim's or Deems site about how you construct the upper leg intersection fairing.

Are you applying the 2 layers of glass to each one?  If so, are you doing it on the plane?  If so, how are you holding it to the fuselage while applying the glass?



I have trimmed the fairings and drilled the 4 holes and clecoed them to the fuselage.  I am happy so far.  Now how do you add the glass while the clecos are holding the fairing in place?  [Shocked]



--------

Gary Blankenbiller

RV10 - # 40674

Final Finishing - SB

(N2GB registered)





Read this topic online here:



http://forums.matronics.com/viewtopic.php?p=244232#24423om/Navigator?RV10-List" target=_blank>http://www.matronics.com/Navigator?              - MATRONICS WEB FORUM;               -Matt Dralle, List Admin==========

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List


Description:

Filesize:

245.5 KB

Viewed:

3616 Time(s)


Description:

Filesize:

370.32 KB

Viewed:

3616 Time(s)


Description:

Filesize:

197.3 KB

Viewed:

3616 Time(s)

_________________
Don A. McDonald
40636

Mike Whisky

Joined: 05 Jun 2006
Posts: 336
Location: Switzerland

Posted: Fri May 15, 2009 10:39 pm Post subject: Re: Upper intersection leg fairing

Hi Don,

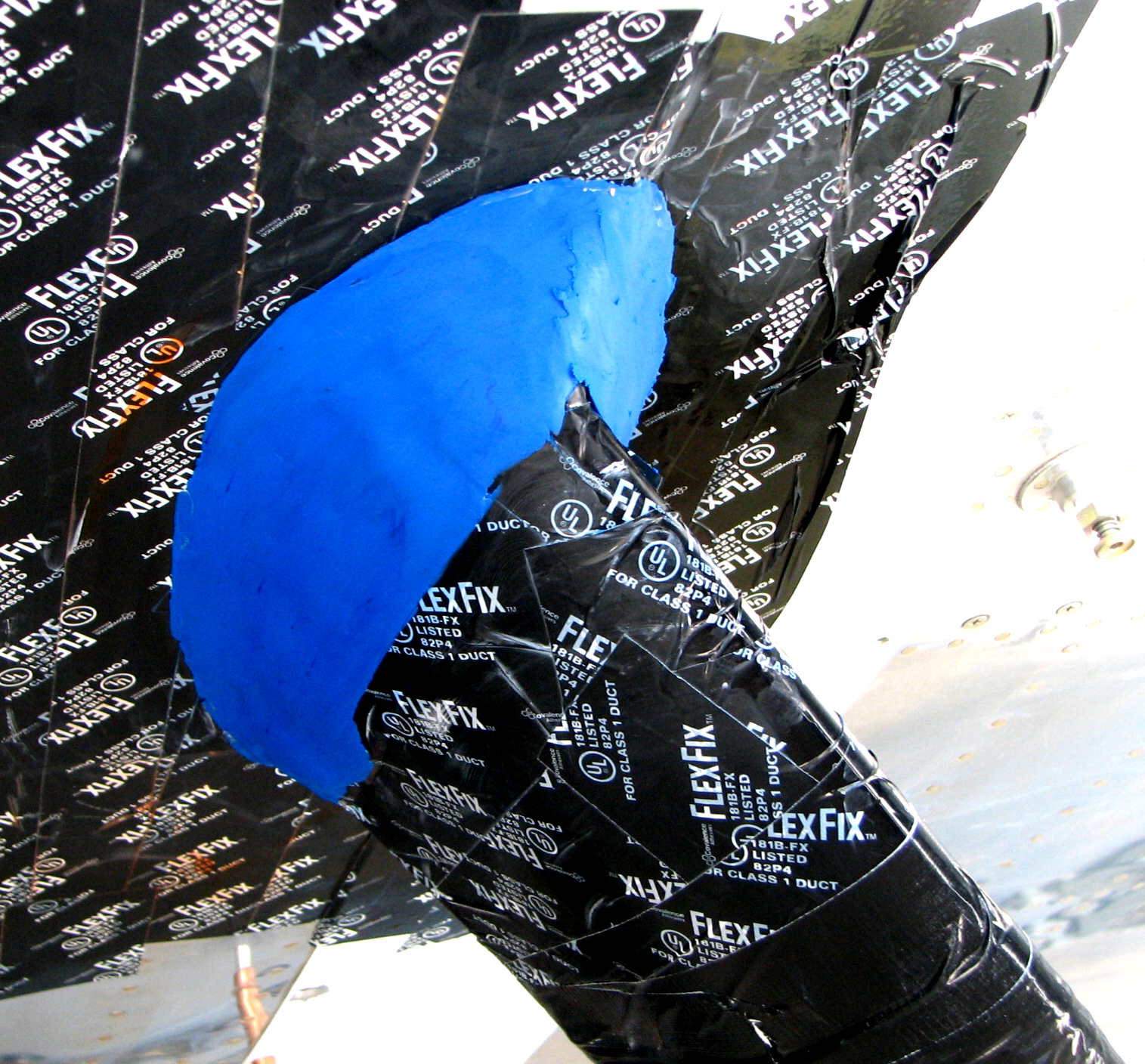

what is the name of the blue stuff that you used to model the fairing with?



Michael

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List

_________________
RV-10 builder (flying)
#511

partner14

Joined: 12 Jan 2008
Posts: 540
Location: Granbury Texas

Posted: Sat May 16, 2009 5:33 am Post subject: Upper intersection leg fairing

Clay...... wife bought it at Michael's.  Easy to form, not as easy to get it all off.... but that doesn't matter much.... after you get off what you can, use a heat gun.... but don't burn the glass.... it kind of rolls right off.

 Don



--- On Fri, 5/15/09, Michael Wellenzohn <rv-10(at)wellenzohn.net> wrote:



  	  Quote:


From: Michael Wellenzohn <rv-10(at)wellenzohn.net>

Subject: Re: Upper intersection leg fairing

To: rv10-list(at)matronics.com

Date: Friday, May 15, 2009, 11:39 PM



 --> RV10-List message posted by: "Michael Wellenzohn" <rv-10(at)wellenzohn.net (rv-10(at)wellenzohn.net)>



Hi Don,



what is the name of the blue stuff that you used to model the fairing with?



Michael



--------

RV-10 builder (engine, prop, finishing)

#511





Read this topic online here:



http://forums.matronics.com/viewtopic.php?pht="http://forums.matronics.com/" target=_blank>http://forums.matronics.c                     &nbsf="http://www.matronics.com/contribution" =======








           [quote][b]

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List

_________________
Don A. McDonald
40636

orchidman

Joined: 10 Jul 2006
Posts: 277
Location: Oklahoma City - KRCE

Posted: Sat May 16, 2009 6:02 am Post subject: Re: Upper intersection leg fairing

 	  Deems Davis wrote:
		  I built them up with additional layers of glass before fitting to the

fuse. here's a link to a photo album:

...

Here's links to the build log:



http://deemsrv10.com/48-10&48-11.htm

http://deemsrv10.com/48-11&48-12.htm



I later decided to attach the lower intersection fairings directly to

the wheel pants, Additional pictures:

...

Deems

N519PJ 16.5 hrs




Deems,

I saw those to pages but didn't read them slow enough the first time.  It

is falling into place.  This is the last thing to do construction wise.  Now if I

can just get the Feds out.  They are scheduled this next week and I hope

to be taking off exactly one week from now.  SUBJECT TO CHANGE!

Thanks all.

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List

_________________
Gary Blankenbiller
RV10 - # 40674
(N2GB Flying)

pitts_pilot(at)bellsouth.
Guest

Posted: Sat May 16, 2009 8:50 am Post subject: Upper intersection leg fairing

You can also get blue foam insulation from Lowes or other building

supply places.  My Home Depot didn't have it.  It's messy, but I think

it'll dissolve with gasoline.

Linn
