 Posted: Sat Apr 15, 2006 1:52 pm Post subject: Streamline Lift Struts / (sleeves)Homemade |
 |
|
Hey guys,

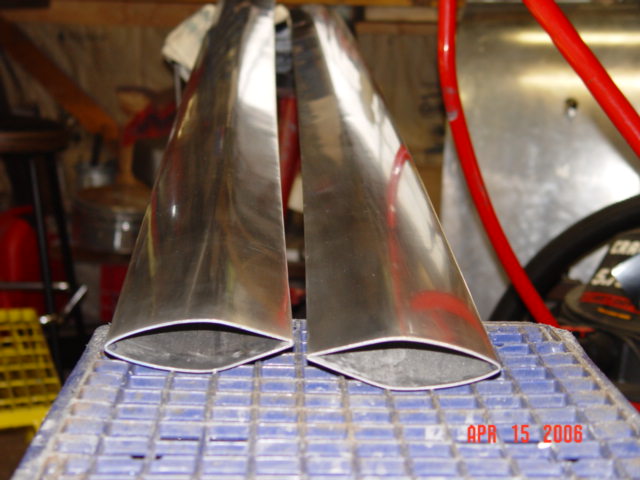

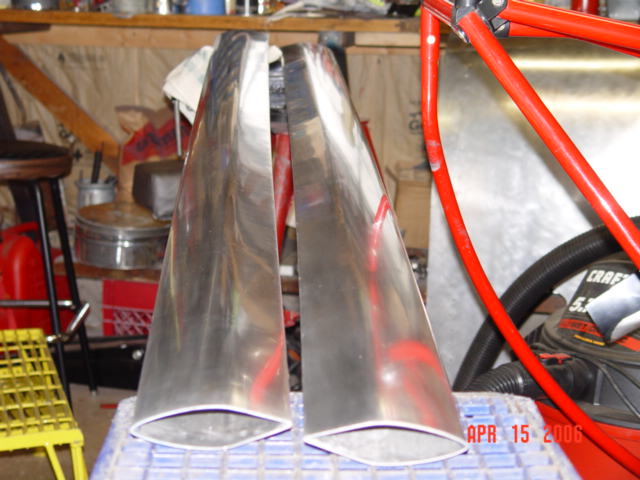

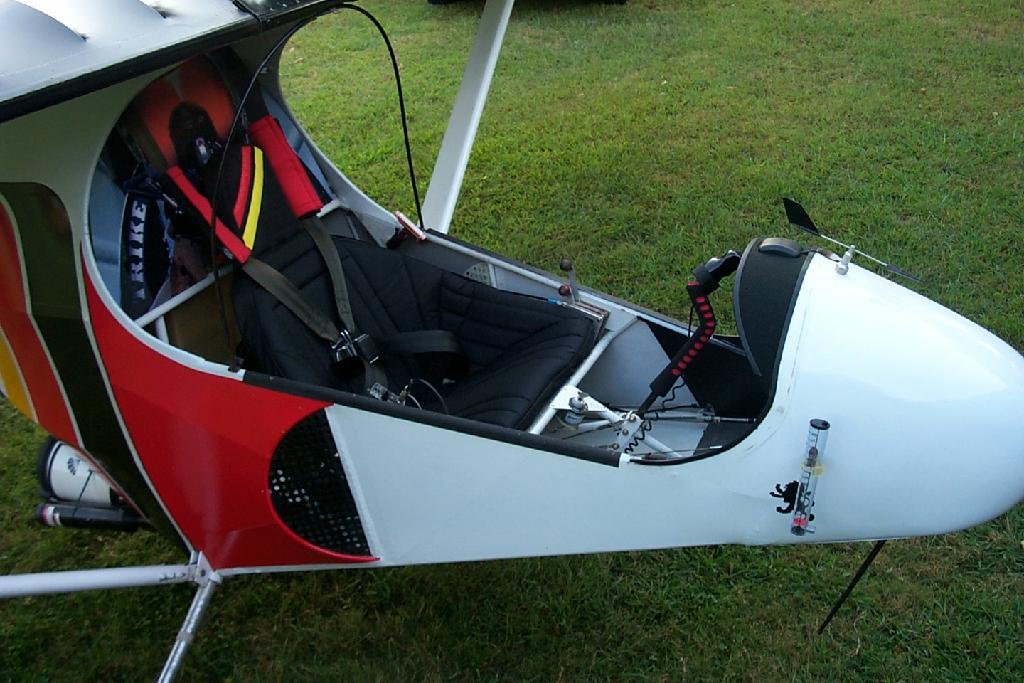

I've been making some streamline lift struts(sleeves) for my Firestar II
When I fly with the "stock" lift struts...They sometimes start to
vibrate and wiggle in flight.....I bought some aluminum and sheared
two pieces 70" x 9 1/4" ....I put them thru the rollers a few times
until they had about a 20" radius to them,Then with a "knife edge"
and a rubber lower die....I bent them in half in the Break.....
I was experimenting with the TIG , to get it small enough to weld
the seam, I wasn't having much luck with the machine "I" had...So I
used the MIG gun....Dialed it in and had a pretty good bead going.
Then I've been working on cleaning them up and polishing them...
I'm waiting on some AN bolts...Their ready to put on....LATER ,
I'm thinking of making some fairings to extend the streamline struts
to a smoother finish.....I haven't seen ANYBODY try to clean that
area up,I think it looks kind of funny when the streamline just stops...
Gotta Fly...
Mike in MN
PS It was 12 bucks worth of aluminum...and working thru lunches...
.
.
.
.
