Posted: Sat Mar 06, 2010 9:05 pm Post subject: firewall wire pass through location.

I am probably making a bigger issue of this than I should, but I have been delaying this for too long. I just don't want to make these wires pass through in the incorrect location.  Can anyone direct me to some good photos of the location they chose and hopefully a location which didn't interfere with anything else.



Thanks,

John

 		 	   		    [quote][b]

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List

AirMike

Joined: 27 Feb 2007
Posts: 514
Location: Nevada

Posted: Sat Mar 06, 2010 11:08 pm Post subject: firewall wire pass through location.

which wires?

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List

_________________
See you OSH '18
Q/B - sold.

dlm46007(at)cox.net
Guest

Posted: Sun Mar 07, 2010 4:49 am Post subject: firewall wire pass through location.

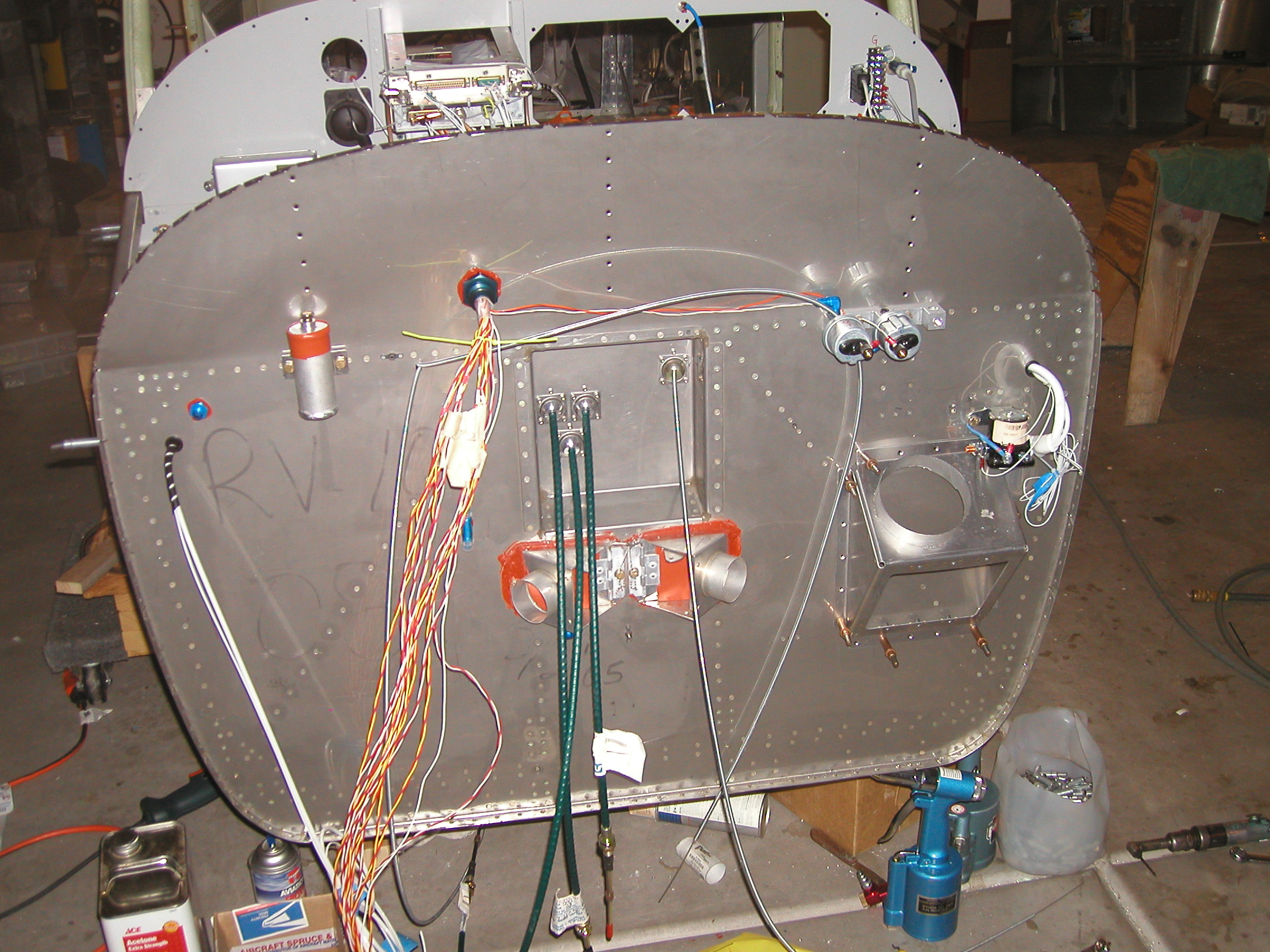

alternator aircraft right, starter aircraft left

   From: owner-rv10-list-server(at)matronics.com  [mailto:owner-rv10-list-server(at)matronics.com] On Behalf Of John  Gonzalez

Sent: Saturday, March 06, 2010 10:02 PM

To: RV 10  group

Subject: firewall wire pass through  location.

I am probably making a bigger issue of this than I should, but I have  been delaying this for too long. I just don't want to make these wires pass  through in the incorrect location.  Can anyone direct me to some good  photos of the location they chose and hopefully a location which didn't  interfere with anything else.

 Thanks,

 John

 	  Quote:

href="http://www.matronics.com/Navigator?RV10-List">http://www.matronics.com/Navigator?RV10-List

href="http://forums.matronics.com">http://forums.matronics.com

href="http://www.matronics.com/contribution">http://www.matronics.com/c

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List


Description:

Filesize:

861.9 KB

Viewed:

7326 Time(s)

MauleDriver(at)nc.rr.com
Guest

Posted: Sun Mar 07, 2010 7:02 am Post subject: firewall wire pass through location.

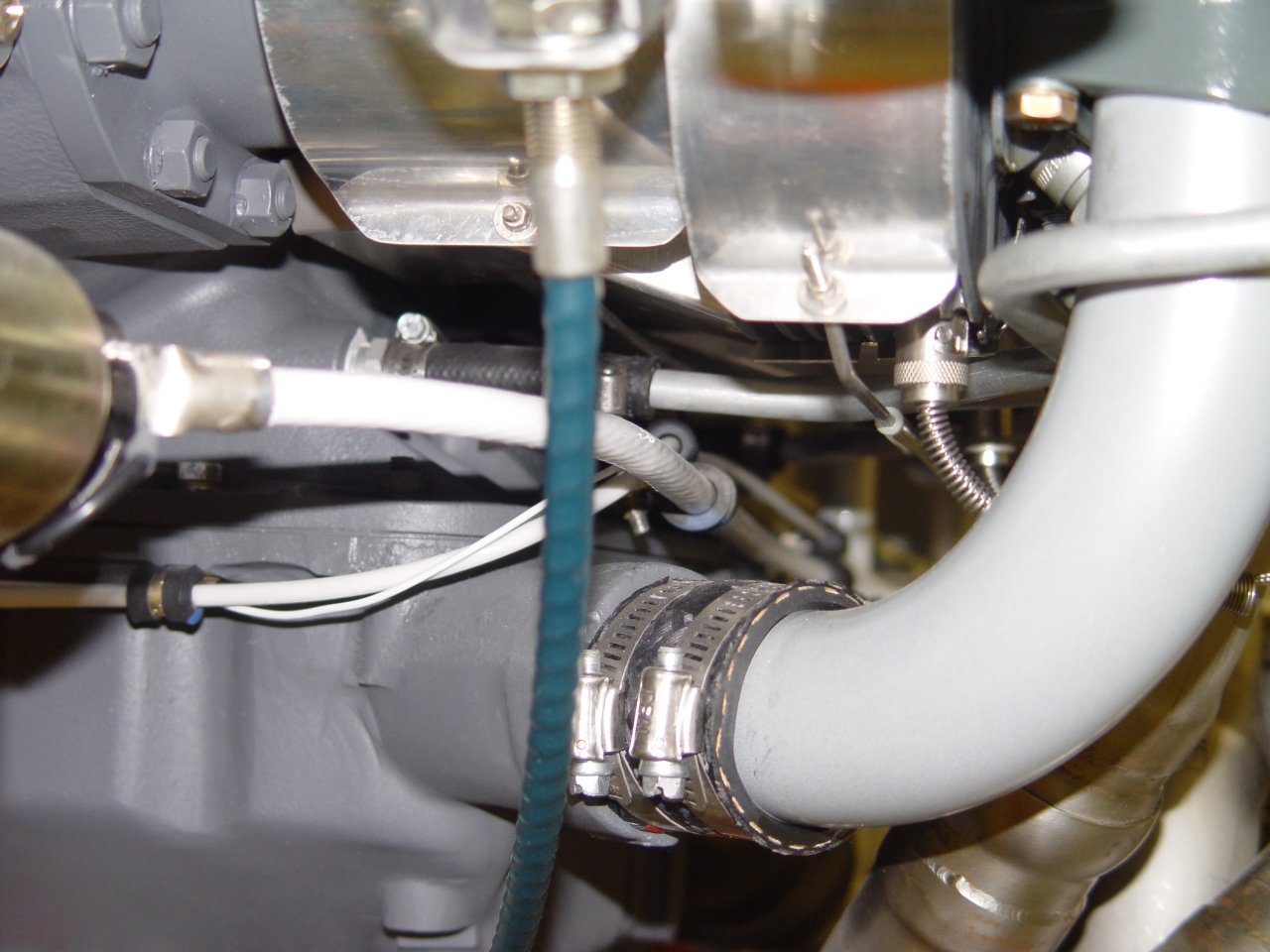

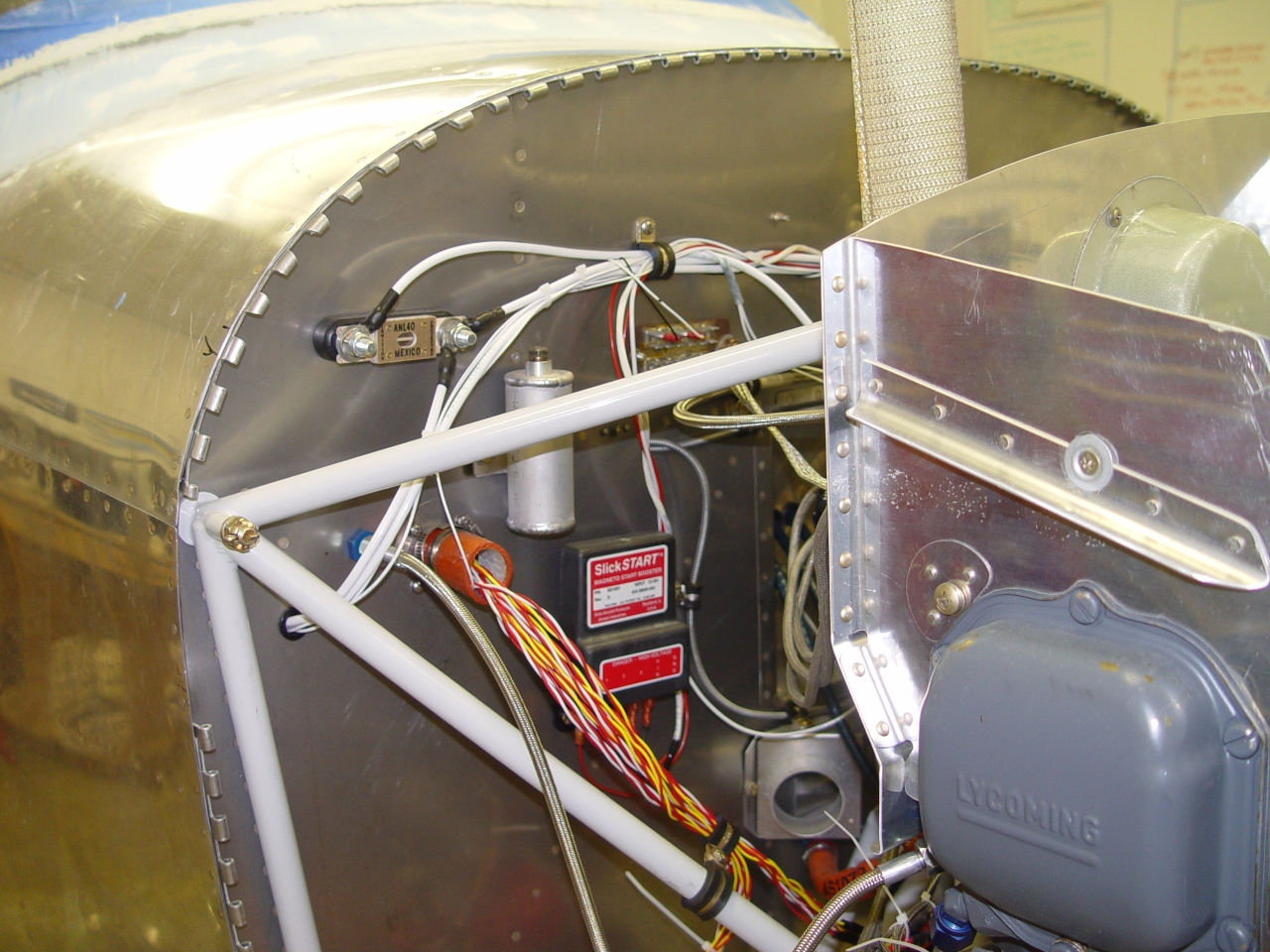

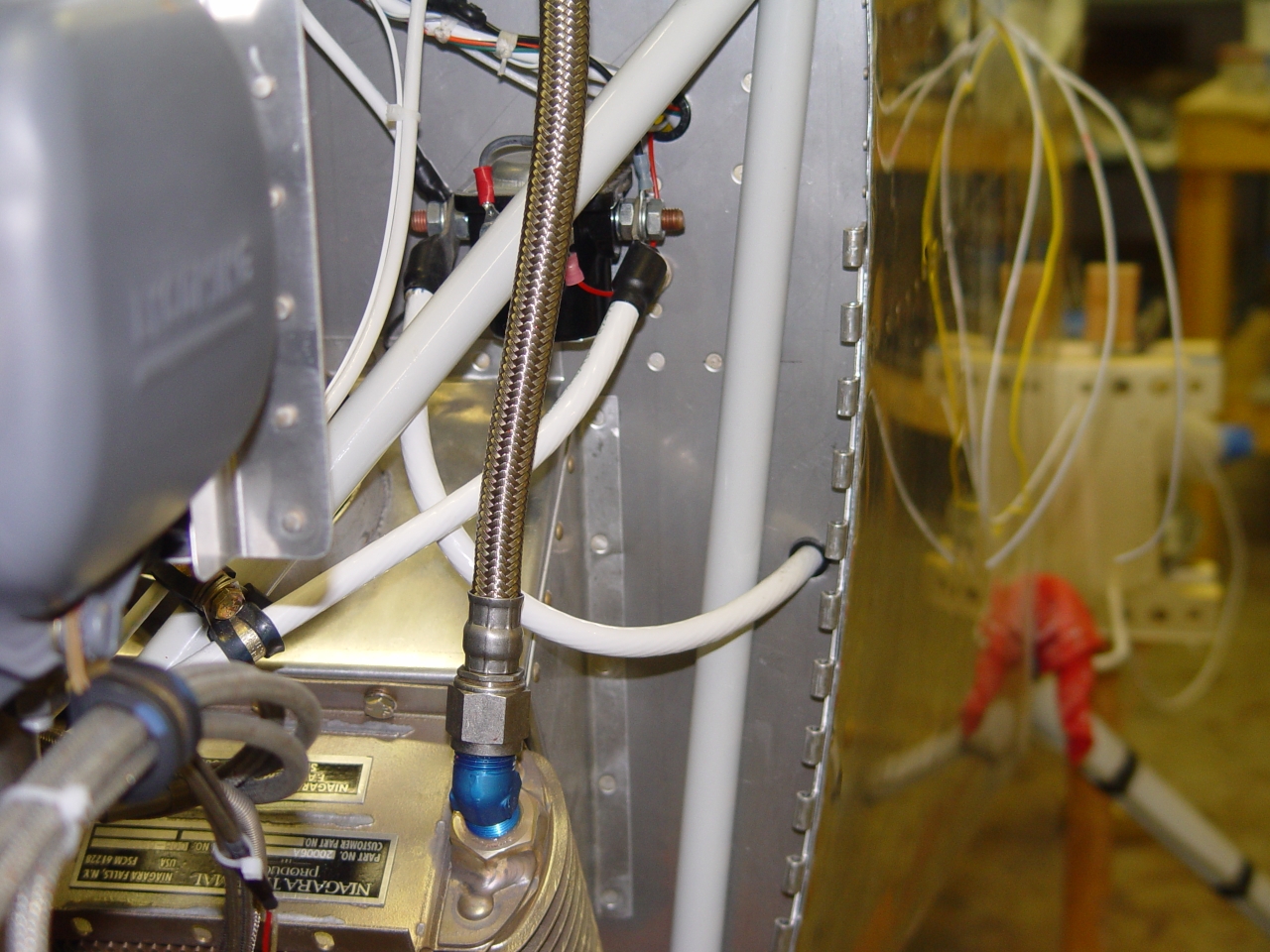

John, I followed the Van's plan for routing those 2 wires.  It gave a

good location for the firewall  pass thru of the fat wire that one

probably wouldn't choose on their own.  It also specified a routing

forward to the starter and alternator (I only have a 40amp Alt up front).



John Gonzalez wrote:

 	  Quote:
		   I am probably making a bigger issue of this than I should, but I have

 been delaying this for too long. I just don't want to make these wires

 pass through in the incorrect location.  Can anyone direct me to some

 good photos of the location they chose and hopefully a location which

 didn't interfere with anything else.



 Thanks,

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List


Description:

Filesize:

727.62 KB

Viewed:

7315 Time(s)


Description:

Filesize:

873.49 KB

Viewed:

7315 Time(s)


Description:

Filesize:

819.82 KB

Viewed:

7315 Time(s)

indigoonlatigo(at)msn.com
Guest

Posted: Sun Mar 07, 2010 7:37 am Post subject: firewall wire pass through location.

This is a helpful picture.



That hole on the right side of the plane(Left side while looking at the picture), near the upper engine mount/firewall tie in location will be for the alternator wires. What I was speaking of are all the wires for the sensors, CHT, Oil Pressure, Oil Temp, Oil Pressure switch, etc. I see that you have them roughly in the same spot that I have been reluctant to drill because of the unknow.

Does anyone anyone have any issues with this location?

Thanks you. Nice helpful photo

John



From: dlm46007(at)cox.net

To: rv10-list(at)matronics.com

Subject: RE: firewall wire pass through location.

Date: Sun, 7 Mar 2010 05:45:58 -0700



      .ExternalClass .ecxhmmessage P {padding-bottom:0px;padding-left:0px;padding-right:0px;padding-top:0px;} .ExternalClass BODY.ecxhmmessage {font-family:Verdana;font-size:10pt;}     alternator aircraft right, starter aircraft left



   From: owner-rv10-list-server(at)matronics.com  [mailto:owner-rv10-list-server(at)matronics.com] On Behalf Of John  Gonzalez

Sent: Saturday, March 06, 2010 10:02 PM

To: RV 10  group

Subject: firewall wire pass through  location.



I am probably making a bigger issue of this than I should, but I have  been delaying this for too long. I just don't want to make these wires pass  through in the incorrect location.  Can anyone direct me to some good  photos of the location they chose and hopefully a location which didn't  interfere with anything else.



 Thanks,





 John

[quote]

href="http://www.matronics.com/Navigator?RV10-List">http://www.matronics.com/Navigator?RV10-List

href="http://forums.matronics.com">http://forums.matronics.com

href="http://www.matronics.com/contribution">http://www.matronics.com/c

[b]

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List

Kellym

Joined: 10 Jan 2006
Posts: 1706
Location: Sun Lakes AZ

Posted: Sun Mar 07, 2010 7:43 am Post subject: firewall wire pass through location.

I hope you are planning some fire protection for those firewall snap

bushings in your photo. I know Van's doesn't call for it, but they also

use aluminum to protect the center tunnel from a blast of burning avgas.



Bill Mauledriver Watson wrote:

 	  Quote:
		   John, I followed the Van's plan for routing those 2 wires.  It gave a

 good location for the firewall  pass thru of the fat wire that one

 probably wouldn't choose on their own.  It also specified a routing

 forward to the starter and alternator (I only have a 40amp Alt up front).



 John Gonzalez wrote:

> I am probably making a bigger issue of this than I should, but I have

> been delaying this for too long. I just don't want to make these wires

> pass through in the incorrect location.  Can anyone direct me to some

> good photos of the location they chose and hopefully a location which

> didn't interfere with anything else.

>

> Thanks,

>





 ------------------------------------------------------------------------





 ------------------------------------------------------------------------





 ------------------------------------------------------------------------

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List

_________________
Kelly McMullen
A&P/IA, EAA Tech Counselor # 5286
KCHD

MauleDriver(at)nc.rr.com
Guest

Posted: Sun Mar 07, 2010 11:04 am Post subject: firewall wire pass through location.

Here's another shot to consider.  I ended up pulling my sensor wires a

bit lower down because I filled up back of the firewall with other

components - ground block, manifold pressure sensor, 2 LR3 Alt

controllers.  By the time I got to the sensor wires, I had to move the

hole further down.   I can't think of any gotcha's for any of these

locations.



Bill "now with both wheel pants mounted" Watson



John Gonzalez wrote:

 	  Quote:
		   This is a helpful picture.



 That hole on the right side of the plane(Left side while looking at

 the picture), near the upper engine mount/firewall tie in location

 will be for the alternator wires. What I was speaking of are all the

 wires for the sensors, CHT, Oil Pressure, Oil Temp, Oil Pressure

 switch, etc. I see that you have them roughly in the same spot that I

 have been reluctant to drill because of the unknow.



 Does anyone anyone have any issues with this location?



 Thanks you. Nice helpful photo



 John

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List


Description:

Filesize:

861.99 KB

Viewed:

7299 Time(s)

MauleDriver(at)nc.rr.com
Guest

Posted: Sun Mar 07, 2010 11:06 am Post subject: firewall wire pass through location.

Well, I'm not planning anything beyond some high temp RTV.



Bill



Kelly McMullen wrote:

 	  Quote:




 I hope you are planning some fire protection for those firewall snap

 bushings in your photo. I know Van's doesn't call for it, but they

 also use aluminum to protect the center tunnel from a blast of burning

 avgas.



 Bill Mauledriver Watson wrote:

> John, I followed the Van's plan for routing those 2 wires.  It gave a

> good location for the firewall  pass thru of the fat wire that one

> probably wouldn't choose on their own.  It also specified a routing

> forward to the starter and alternator (I only have a 40amp Alt up

> front).

>

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List

drfred(at)suddenlinkmail.
Guest

Posted: Sun Mar 07, 2010 3:03 pm Post subject: firewall wire pass through location.

That is about where I put my sensor wires.  Try and leave that triangle

as open as possible as that is the hole through which you will likely be

removing the oil filter when it is time to do the oil changes.



Dr Fred



Bill Mauledriver Watson wrote:

 	  Quote:
		   Here's another shot to consider.  I ended up pulling my sensor wires a

 bit lower down because I filled up back of the firewall with other

 components - ground block, manifold pressure sensor, 2 LR3 Alt

 controllers.  By the time I got to the sensor wires, I had to move the

 hole further down.   I can't think of any gotcha's for any of these

 locations.



 Bill "now with both wheel pants mounted" Watson



 John Gonzalez wrote:

> This is a helpful picture.

>

> That hole on the right side of the plane(Left side while looking at

> the picture), near the upper engine mount/firewall tie in location

> will be for the alternator wires. What I was speaking of are all the

> wires for the sensors, CHT, Oil Pressure, Oil Temp, Oil Pressure

> switch, etc. I see that you have them roughly in the same spot that I

> have been reluctant to drill because of the unknow.

>

> Does anyone anyone have any issues with this location?

>

> Thanks you. Nice helpful photo

>

> John

 ------------------------------------------------------------------------

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List
