 Posted: Fri Jul 11, 2025 1:53 am Post subject: Brake Caliper Blocks |
 |
|
Does anyone have a Cleveland part number for replacement brake blocks on the Mono?
Thanks
| | - The Matronics Europa-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Europa-List |
|
|
|
| Back to top |
|
 |
RogerJMills
Joined: 12 Nov 2016
Posts: 4
|
| Posted: Fri Jul 11, 2025 3:19 am Post subject: Brake Caliper Blocks |
|
|
If you mean the brake pads, I have the following info about a Rapco
alternative which I picked up from this forum some time ago. I haven't used
it personally so can't vouch for it, but it might be worth a try:
RA066-10600 Brake Lining
Replaces: Cleveland PN. 066-10600, Old PN. 66-106, 066-0200, 66-2, 066-0300,
66-3, 66-56, 66-57 & Piper PN. 752-308, 752-309
Best Regards
Roger Mills
--
| | - The Matronics Europa-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Europa-List |
|
_________________
Roger Mills |
|
| Back to top |
|
|
Area-51
Joined: 03 May 2021
Posts: 436
|
| Posted: Fri Jul 11, 2025 11:11 pm Post subject: Re: Brake Caliper Blocksngs |
|
|
Thanks Roger,
That number cross references with Parker Cleveland 066-10600 Linings (x4), 105-00200 are the rivets (x6)... 6" External System, Caliper 30-18
Am familiar with Rapco , thanks for direction 👍
| | - The Matronics Europa-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Europa-List |
|
|
|
| Back to top |
|
|
Area-51
Joined: 03 May 2021
Posts: 436
|
| Posted: Sat Jul 19, 2025 3:17 am Post subject: Re: Brake Caliper Blocks |
|
|
Job done 👍
| | - The Matronics Europa-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Europa-List |
|
| Description: |
|
| Filesize: |
144.83 KB |
| Viewed: |
89 Time(s) |
|
| Description: |
|
| Filesize: |
91.12 KB |
| Viewed: |
89 Time(s) |
|
|
|
| Back to top |
|
|
h&jeuropa
Joined: 07 Nov 2006
Posts: 653
|
| Posted: Sun Jul 20, 2025 7:34 am Post subject: Re: Brake Caliper Blocks |
|
|
Rapco pads work well and we are now using Matco pads. They are a little less aggressive material.

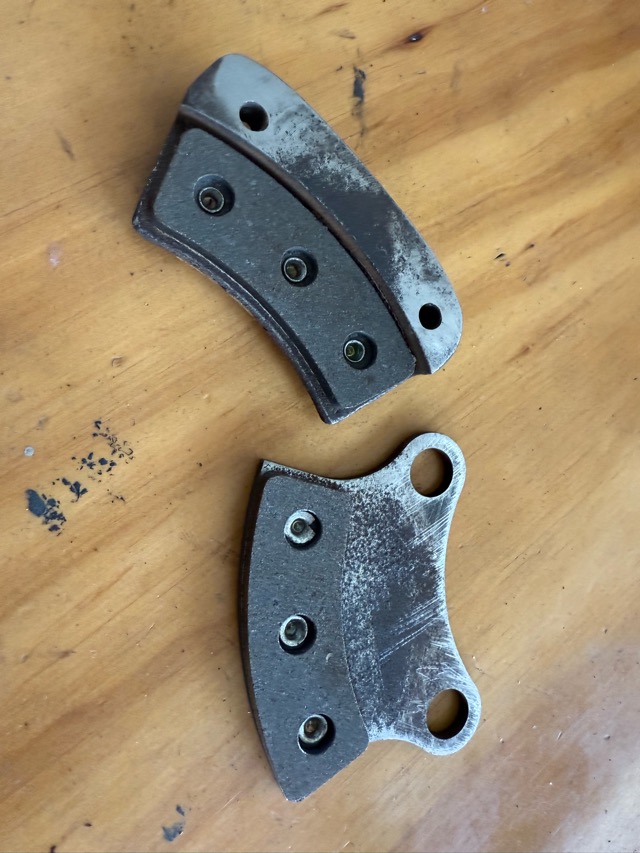

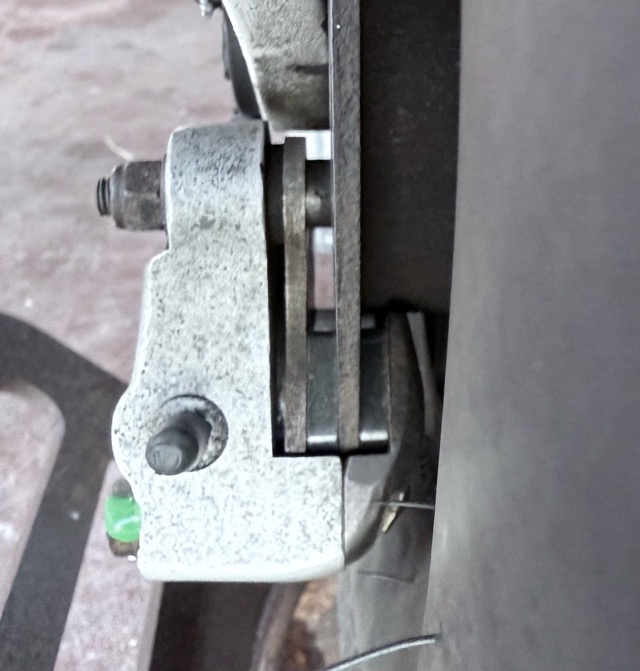

You photos look like the head of the rivet is on the plate. Most instructions call for the head to be on the pad so there is more area touching the pad itself. Small point for future reference. We've done them both ways!
Jim Butcher
| | - The Matronics Europa-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Europa-List |
|
|
|
| Back to top |
|
|
RogerJMills
Joined: 12 Nov 2016
Posts: 4
|
| Posted: Sun Jul 20, 2025 8:11 am Post subject: Brake Caliper Blocks |
|
|
Just a slight worry: when the head of the rivet is on the pad, as designed, there will be a more evenly distributed load on the pad. This might be an issue because the pad material is brittle and it may be subject to higher stress if the rivet head is on the plate.
Hopefully there will be a high enough safety factor for it not to matter?
It may be worth keeping a close eye on how the pads are wearing because the pad life will be shorter and the rivetted end will gouge the disk sooner and more than the flat head would.
Roger Mills
Sent from my mobile
| Quote: | On 20 Jul 2025, at 16:35, h&jeuropa <butcher43(at)att.net> wrote:
Rapco pads work well and we are now using Matco pads. They are a little less aggressive material.
You photos look like the head of the rivet is on the plate. Most instructions call for the head to be on the pad so there is more area touching the pad itself. Small point for future reference. We've done them both ways!
Jim Butcher
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=515472#515472
|
| | - The Matronics Europa-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Europa-List |
|
_________________
Roger Mills |
|
| Back to top |
|
|
Area-51
Joined: 03 May 2021
Posts: 436
|
| Posted: Mon Jul 21, 2025 2:20 am Post subject: Re: Brake Caliper Blocks |
|
|
Thanks for the info guys; yes fitted Cleveland Parker friction blocks... I put the new rivets as the old ones were fitted, and points noted. The catalogue shows rivet orientation as you mention. Might get another set of rivets and redo them. It's not a big job to R&R.
| | - The Matronics Europa-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Europa-List |
|
Last edited by Area-51 on Mon Jul 21, 2025 1:39 pm; edited 1 time in total |
|
