Contest: Identify this instrument....

Matronics Email Lists Forum Index -> Kitfox-List

View previous topic :: View next topic

Author Message

avidfox

Joined: 03 Apr 2007
Posts: 87

Posted: Tue Mar 25, 2008 9:48 am Post subject: Contest: Identify this instrument....

A while back I tried to research the origin and original installation of this instrument. No luck. (Yes, I Googled... I haven't tried recently. )



  I will gladly send one like it, (I have more than one) to the person who can provide the most accurate information, such as age and what type of aircraft (if any) it was originally used in, for the cost of shipping only...a couple bucks at the most.



Web references will be a plus.

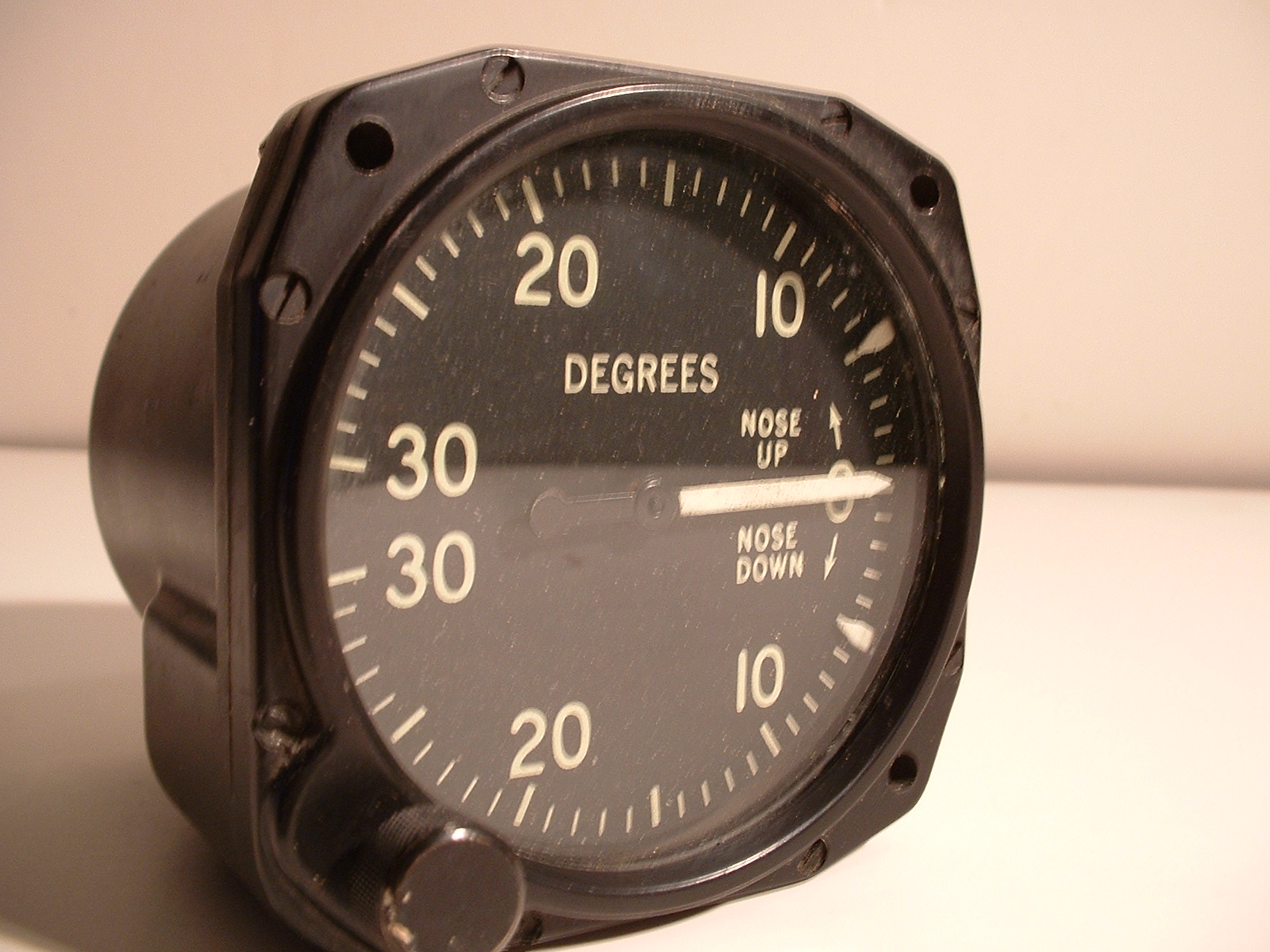

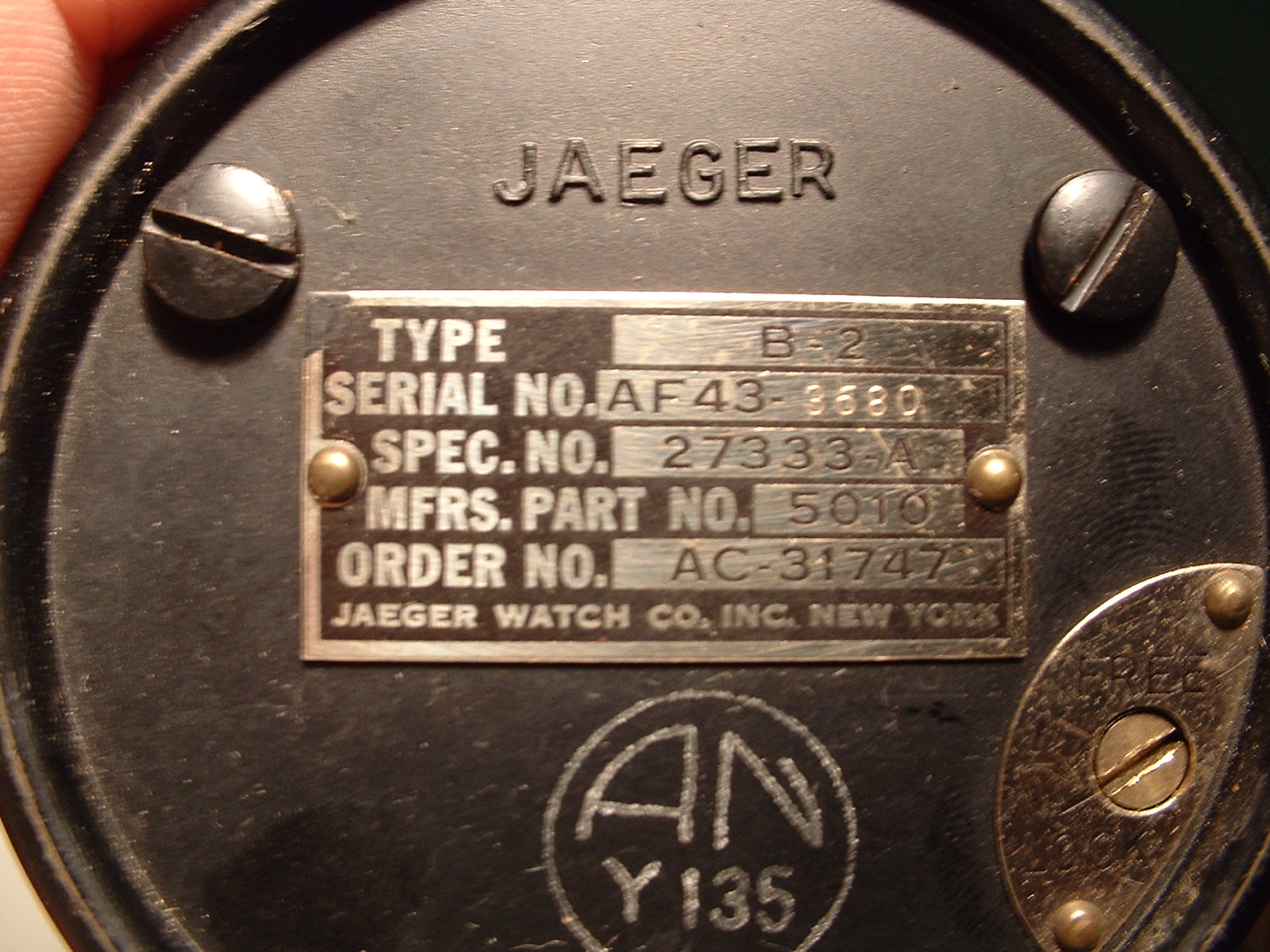

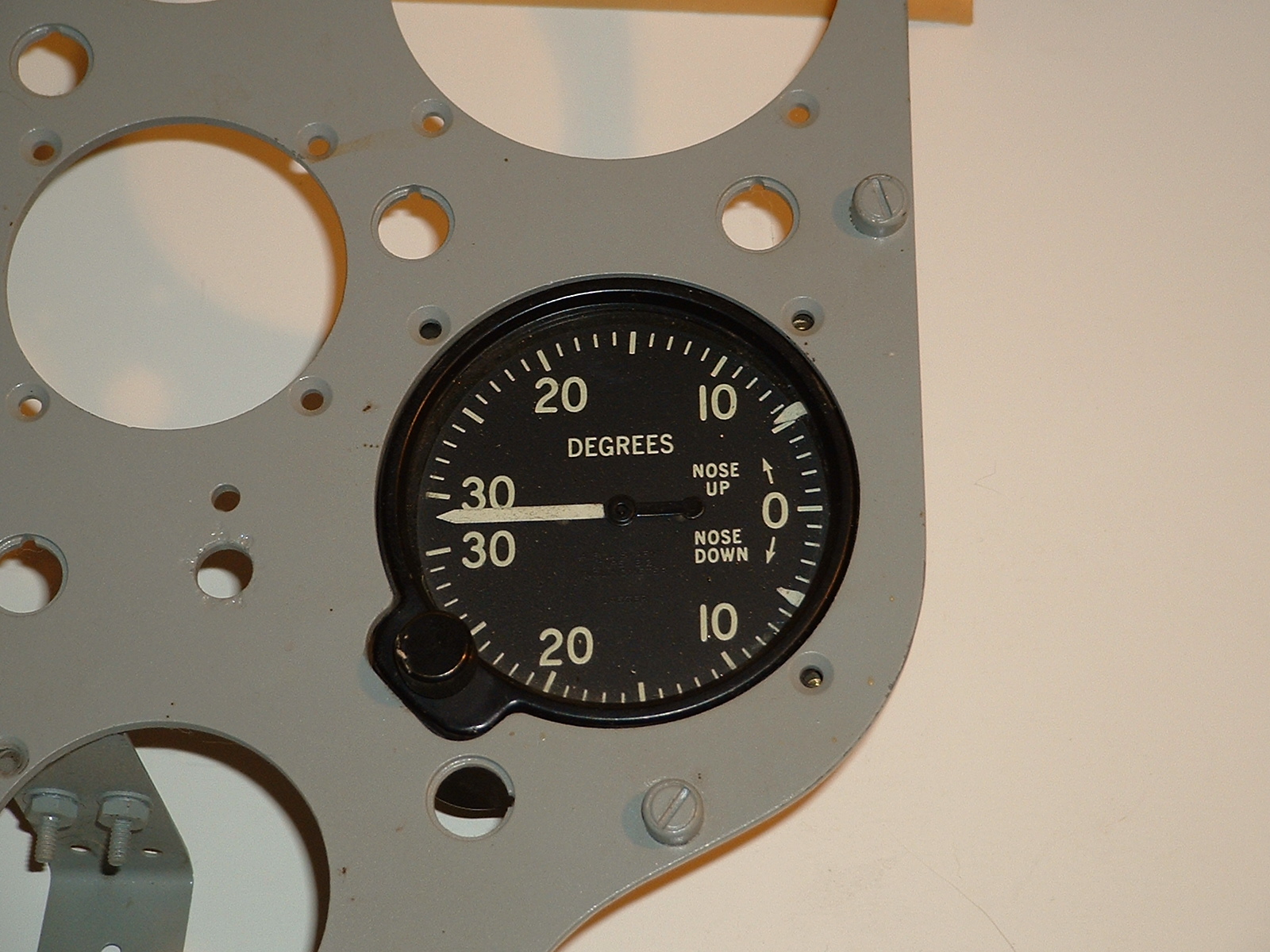

  It is a high-quality instrument, about a 1/2 pound or so, and very sensitive to pitch change on its longitudinal axis. The attached pictures show it both caged and uncaged.



  The pointers are adjustable via the knob in front, caging is done at the rear.



Just to keep the post KitFox related, let me say that I plan to (temporarily) replace my VSI with one just to see how it behaves in flight.



Steve

84KF

KF5\912UL


Description:

Filesize:

620.99 KB

Viewed:

739 Time(s)


Description:

Filesize:

619.98 KB

Viewed:

686 Time(s)


Description:

Filesize:

641.29 KB

Viewed:

645 Time(s)


Description:

Filesize:

615.16 KB

Viewed:

714 Time(s)

akflyer

Joined: 07 May 2007
Posts: 574
Location: Soldotna AK

Posted: Tue Mar 25, 2008 11:15 am Post subject: Re: Contest: Identify this instrument....

Steve, that is an inclinometer that is used as an early stall warning device.  If you do go past a certain angle of attack you don't fall out of the sky.  It was first used in under powered birds that did not have a power to weight ratio worth a whooey.  (the kitfox   has a much better power to weight ratio)



I will pm my address to you LOL



do I get a prize for first answer pulled directly from my... uh .. uh... behind?



edit... I pulled the above from my butt, however here is a link... I was basically right lol



http://airex.org/aeronautica01.html



edit #2... I just noticed the serial number... the one you are holding in your hand is the one shown in the link above.... guess you already knew about the link huh..  your getting good at making me look dumb LOL

_________________
DO NOT ARCHIVE
Leonard Perry aka SNAKE
Soldotna AK
Avid "C" / Mk IV
582 (147 hrs and counting on the rebuild)
IVO IFA
Full Lotus 1450
#1 snake oil salesman since 1-22-2009

I would rather die trying to live, than to live trying not to die....

Last edited by akflyer on Tue Mar 25, 2008 11:27 am; edited 1 time in total

greg(at)case-assembly.com
Guest

Posted: Tue Mar 25, 2008 11:21 am Post subject: Contest: Identify this instrument....

Take a look at http://forgottenfield.com/amg/instrument/



Fourth from the bottom.  I believe it may be a B17 nose pitch gauge.



Greg

N42001 KF-IV in refurb

N81774 PA-32-301 Saratoga







--

Tom Jones

Joined: 12 Mar 2006
Posts: 752
Location: Ellensburg, WA

Posted: Tue Mar 25, 2008 11:54 am Post subject: Re: Contest: Identify this instrument....

 	  greg(at)case-assembly.com wrote:
		  Take a look at http://forgottenfield.com/amg/instrument/



Fourth from the bottom.  I believe it may be a B17 nose pitch gauge.



Greg

N42001 KF-IV in refurb

N81774 PA-32-301 Saratoga

--




That picture is a match.  What is the purpose of such an instrument?  I'll take a wild guess at something to do with glider towing.

_________________
Tom Jones
Classic IV
503 Rotax, 72 inch Two blade Warp
Ellensburg, WA

avidfox

Joined: 03 Apr 2007
Posts: 87

Posted: Tue Mar 25, 2008 12:16 pm Post subject: Contest: Identify this instrument....

"I believe it may be a B17 nose pitch gauge"





 I realize that the following link is not an "original picture", and does not represent all models produced, buI don't see the instrument installed.

 http://b17panels.com/id13.html



 And leni....go wash your hands...please.

 Steve

 84KF



  [quote][b]

Float Flyr

Joined: 19 Jul 2006
Posts: 2704
Location: Campbellton, Newfoundland

Posted: Tue Mar 25, 2008 3:53 pm Post subject: Contest: Identify this instrument....

Certainly looks like some sort of attitude indicator  just wondering if the

two flat head screws on the back adjust the two bugs on the front dial.

Also is there an electrical connection on the back below where the picture

ends?



I don't think I'd use this instead of a VSI but it could be fun getting your

attitude right for landing.



Noel



--

_________________
Noel Loveys
Kitfox III-A
Aerocet 1100 Floats

msm_9949(at)yahoo.com
Guest

Posted: Tue Mar 25, 2008 5:30 pm Post subject: Contest: Identify this instrument....

I'll take a stab.



  I've seen some like it on e-bay. It's a WWII vintage (1943) inclinometer. Could have been used in any number of warbirds from that era but I'm sure I've seen them in B-24 panels.



  do not archive



avidfox <avidfox(at)gmail.com> wrote:

  [quote]--> Kitfox-List message posted by: "avidfox"



A while back I tried to research the origin and original installation of this instrument. No luck. (Yes, I Googled... I haven't tried recently. )



I will gladly send one like it, (I have more than one) to the person who can provide the most accurate information, such as age and what type of aircraft (if any) it was originally used in, for the cost of shipping only...a couple bucks at the most.



It is a high-quality instrument, about a 1/2       Be a better friend, newshound, and  [quote][b]

avidfox

Joined: 03 Apr 2007
Posts: 87

Posted: Tue Mar 25, 2008 6:55 pm Post subject: Re: Contest: Identify this instrument....

"I don't think I'd use this instead of a VSI but it could be fun getting your

attitude right for landing."



Noel, (and all)

  Pitch attitude\landing...My thinking exactly...(in combination with PROPER airspeed )



    Here is a few pics of the instrument I will "try" in flight next. It has BOTH inclinometer and VSI function.(meters per second)

Same size mounting, metric installation screw threads.  The vertical tube contains amber colored liquid, somewhat viscous, for dampening the movement. The flecks behind the glass don't show up under normal lighting.



The only person who will get this one is the first single blond (female..., female, Leni ) who shows up at my doorstep with a Porsche.



Still waiting for confirmation on the Jeager instrument.



"Confirmation....I need confirmation."

(Tora Tora Tora)



Steve

84KF


Description:

Filesize:

355.84 KB

Viewed:

653 Time(s)


Description:

Filesize:

330 KB

Viewed:

674 Time(s)

Mo

Joined: 29 Jan 2006
Posts: 14
Location: Massachusetts

Posted: Tue Mar 25, 2008 7:09 pm Post subject: Contest: Identify this instrument....

Looks like a pitch versus the horizon meter, a precursor to the angle of

attack meter.

Maurice

Kitfox 7A, 912S, IVO GA, building

---

Jim Shumaker

Joined: 09 Jan 2006
Posts: 106

Posted: Tue Mar 25, 2008 8:03 pm Post subject: Contest: Identify this instrument....

Rate of climb and Pitch on the same meter.  Where is that used?



 Jim Shumaker

 ---

_________________
Jim Shumaker
