 Posted: Thu Nov 24, 2011 4:59 am Post subject: Any idea what this is? |
 |
|

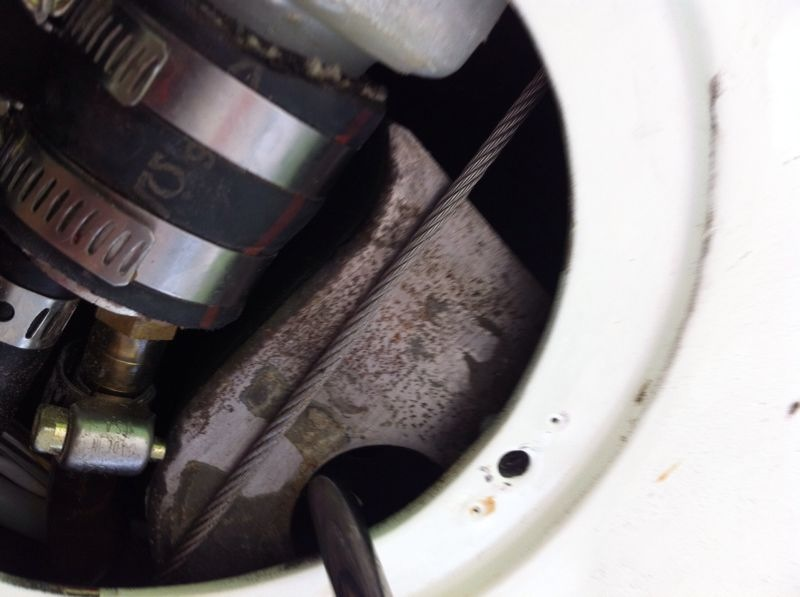

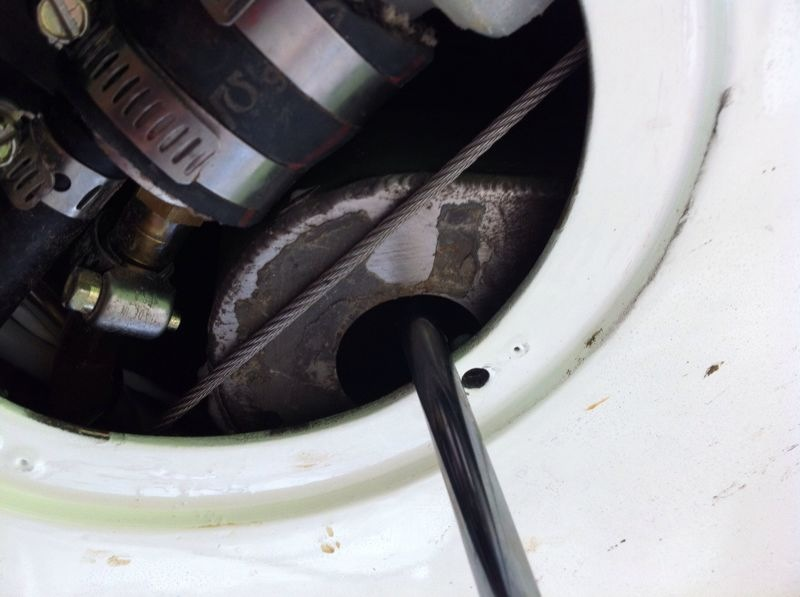

My engineer just found this floating around in the belly of the aircraft, he was quite worried it could get entangled somewhere and jam a control.
The question is…. What is it? Did it do something important?
Thanks,
-Carl.
[img]cid:E4CEF670-BF7E-41A9-875B-EF3EB26FB05A[/img]
[img]cid:8EAAFBAB-0E70-44CC-86FF-BB4A090AF926[/img]
| | - The Matronics Europa-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Europa-List |
|
| Description: |
|
| Filesize: |
451.13 KB |
| Viewed: |
3851 Time(s) |
![photo[1].png](files/photo_1__117.png)
|
| Description: |
|
| Filesize: |
480.16 KB |
| Viewed: |
3851 Time(s) |
![photo[2].png](files/photo_2__105.png)
|
|
|
| Back to top |
|
 |
h&jeuropa
Joined: 07 Nov 2006
Posts: 654
|
|
| Back to top |
|
|
neveyre(at)aol.co.uk
Guest
|
| Posted: Thu Nov 24, 2011 10:14 am Post subject: Any idea what this is? |
|
|
Hi,
As Jim and Heather have said, the rigging cup that captures the tip of the Port spar. Not needed to be there for structural reasons, but makes life a whole lot easier to rig the wings.
Would have / should have been Reduxed on during the build, I insist [ when doing Final Inspections] on a 3 ply Bid lay up from the rim, onto the seatback bulkhead [ 1'' x 1'' ] to prevent just this from happening.
If you haven't got Redux about, scuff the can and seat back area with 80 grit paper and bond on with [std ] J B Weld, wipe on a good radius fillet, then do a 3 Bid lay up with whatever epoxy you can get , Zap from you Hobby Store will do for this. It should ''register'' back on to the Redux pad that is left on the seatback, you can release the tip of the Port spar with packing tape and wax, and nip up with a greased bolt with the Port wing rigged to be sure of correct position.
Check the bond of the other one [ on the aft of the Port spar ]that takes the Stb spar tip.
Cheers,
Nev
--
| | - The Matronics Europa-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Europa-List |
|
|
|
| Back to top |
|
|
ptag.dev(at)tiscali.co.uk
Guest
|
| Posted: Thu Nov 24, 2011 12:19 pm Post subject: Any idea what this is? |
|
|
Hi! Carl
It is the receptacle can for the port spar and should be reduxed to the rear of the starboard seat back/tank forward bulk head.
It is damaging the ruder cable in the present location. And was probably knocked off by misdirected assembly.
If it is not in position between both spars it will allow the starboard pin to be end loose, and therefore IMHO it is a critical part.
I recently advised putting leading ramps on to this item to safly guide the port spar into the can rather than thumping it off.
It also occurres to me to say that one of your fuel pipes isn’t pushed right home under the clip?
Regards
Bob Harrison.
From: owner-europa-list-server(at)matronics.com [mailto:owner-europa-list-server(at)matronics.com] On Behalf Of Carl Meek
Sent: 24 November 2011 12:56
To: europa-list(at)matronics.com
Subject: Any idea what this is?
My engineer just found this floating around in the belly of the aircraft, he was quite worried it could get entangled somewhere and jam a control.
The question is…. What is it? Did it do something important?
Thanks,
-Carl.
