 Posted: Mon Jan 11, 2021 3:38 pm Post subject: Mono Slave Cyl O-ring |
 |
|
Could someone advise the size/Part No of the Mono slave cylinder O ring please.
Regards
Kingsley in Oz
| | - The Matronics Europa-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Europa-List |
|
|
|
| Back to top |
|
 |
Remi Guerner
Joined: 14 Dec 2010
Posts: 284
|
| Posted: Tue Jan 12, 2021 12:55 am Post subject: Re: Mono Slave Cyl O-ring |
|
|
Hello Kingsley,

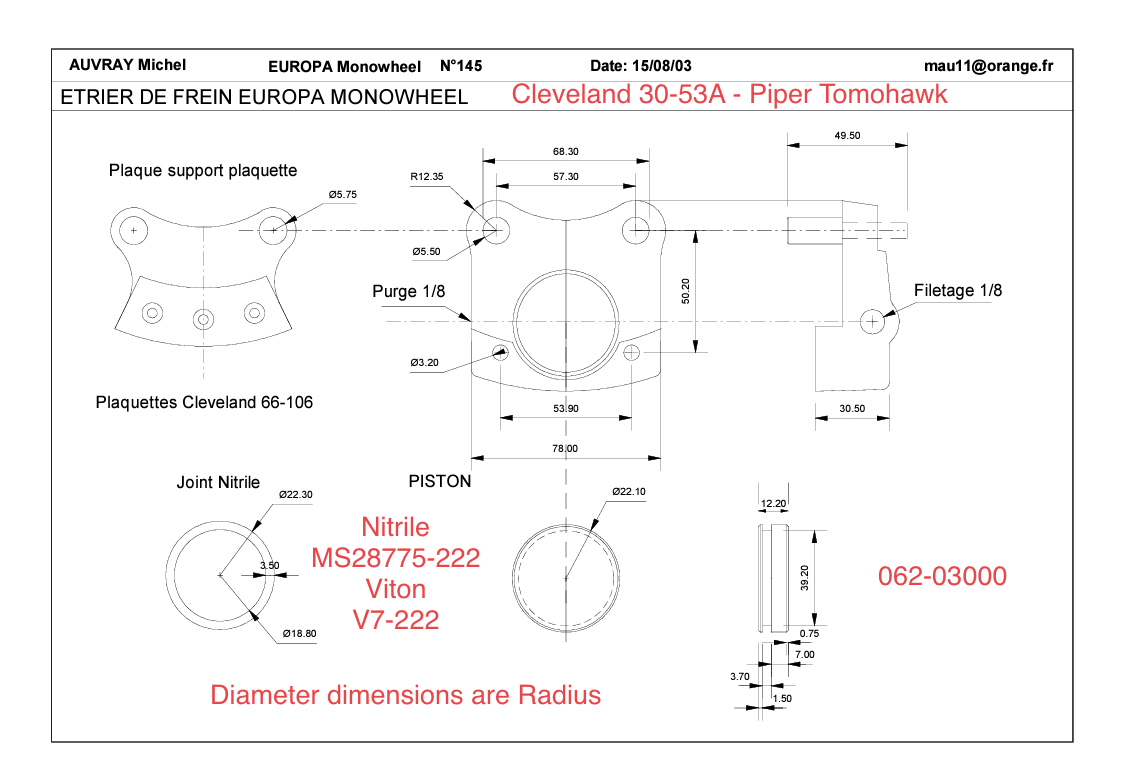

Attached is a drawing from Michel Auvray showing the dimension of this O-ring
Remi
| | - The Matronics Europa-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Europa-List |
|
| Description: |
|
Download |
| Filename: |
Frein Auvray.pdf |
| Filesize: |
65.47 KB |
| Downloaded: |
478 Time(s) |
|
|
| Back to top |
|
|
kingsnjan(at)westnet.com.
Guest
|
| Posted: Wed Jan 13, 2021 8:14 pm Post subject: Mono Slave Cyl O-ring |
|
|
Many thanks for the drawing Remi, you are a handy person to know!
Consistent with the constraints of my ability to accurately measure the
size of the 'O' ring I purchased, it appears mine is the same as the one
in Michel's drawing so I feel more confident now that I have the correct
size.
Thanks again mate.
Kingsley
On 12.01.21 6:55 pm, Remi Guerner wrote:
| Quote: |
Hello Kingsley,
Attached is a drawing from Michel Auvray showing the dimension of this O-ring
Remi
|
| | - The Matronics Europa-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Europa-List |
|
|
|
| Back to top |
|
|
Area-51
Joined: 03 May 2021
Posts: 439
|
| Posted: Thu Jul 11, 2024 11:07 pm Post subject: Re: Mono Slave Cyl O-ring |
|
|
Updated Data; File attached...
| | - The Matronics Europa-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Europa-List |
|
| Description: |
|
| Filesize: |
241.84 KB |
| Viewed: |
4725 Time(s) |
|
|
|
